GE IS200AEPCH1ACC IS215AEPCH1DB | AEPCH Analog‑Ethernet Processor Boards

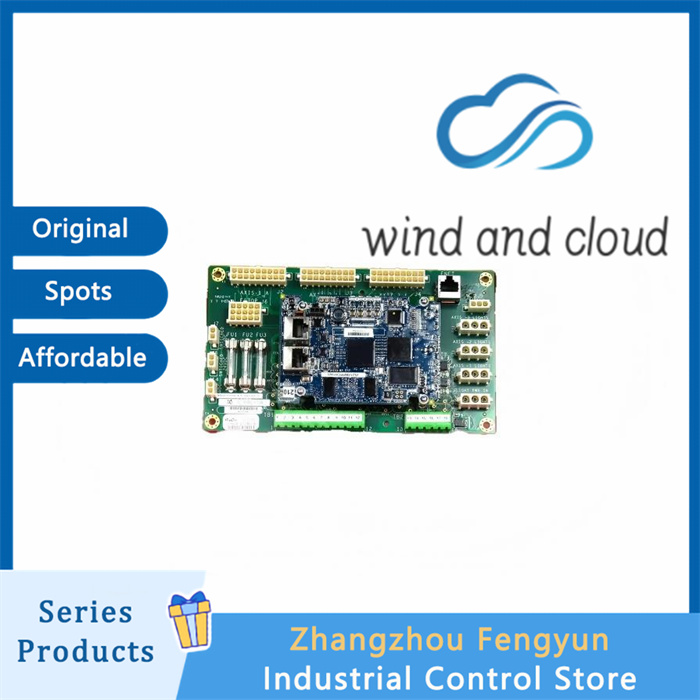

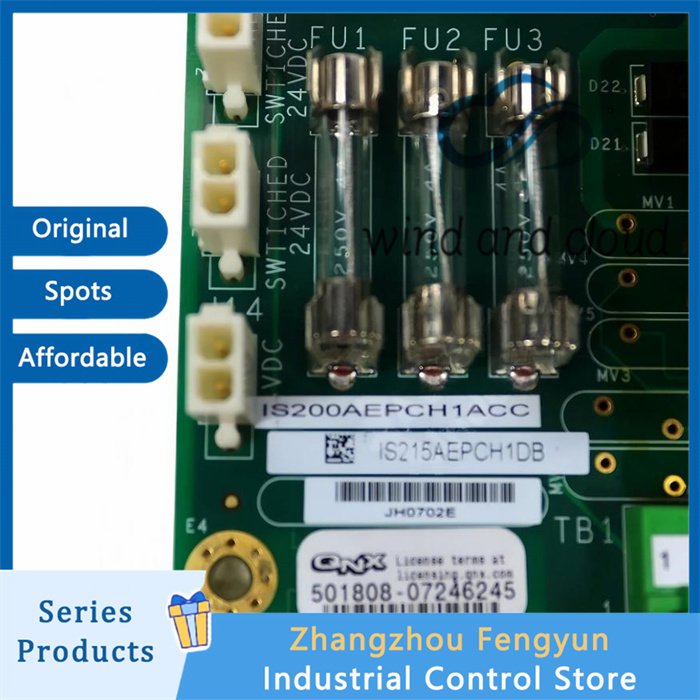

IS200AEPCH1ACC and IS215AEPCH1DB are AEPCH (Analog‑Ethernet Processor Control) hardware‑revision control PCBs for GE Mark VIe Speedtronic control platform. IS200AEPCH1ACC is the base‑assembly AEPCH board, while IS215AEPCH1DB is the upgraded complete assembly variant. Both are optimized for high‑speed analog signal processing, thyristor‑bridge firing pulse output, IONet and industrial‑Ethernet communication, supporting real‑time data acquisition, bridge‑logic processing for gas‑turbine, steam‑turbine and generator static‑excitation control applications.

These boards receive multi‑channel analog sensor signals, bridge‑phase feedback, discrete interlock and status signals from power‑plant field equipment. They execute local high‑speed signal conditioning, data conversion and firing‑pulse generation algorithms, exchanging real‑time control data with main controllers via IONet backplane and Ethernet interfaces. Comprehensive on‑board hardware diagnostics detect signal over‑range, wire breakage, thyristor‑gate faults, communication link failure and internal hardware anomalies, storing timestamped fault events in onboard flash memory for post‑failure analysis via GE ControlST software. The PCBs adopt conformal‑coating treatment for anti‑humidity and anti‑corrosion performance to adapt harsh cabinet operating environments of power‑plant sites. Each unit is equipped with an auxiliary daughter‑board to extend FPGA‑based logic and communication processing capacity.

Hardware specifications: Full part identifier: IS200AEPCH1ACC / IS215AEPCH1DB Form factor: Standard 6U VME rack‑mount PCB with integrated auxiliary daughter‑board Compatible platform: GE Mark VIe Speedtronic control system, supports simplex and TMR triple‑modular‑redundant architecture Communication interfaces: IONet backplane bus, industrial Ethernet for high‑speed control‑data exchange Signal & control functions: Multi‑channel differential analog input circuits, thyristor‑bridge firing‑pulse output, over‑voltage and common‑mode noise suppression On‑board resources: FPGA logic unit, flash memory for fault‑event logging, LED status indicators for power, communication and fault diagnosis Backplane power supply: 24 VDC backplane power supply, typical power consumption approx 11 W Operating temperature: ‑40°C ~ +70°C; storage temperature: ‑40°C ~ +85°C Humidity: 5%‑95% non‑condensing environment Conformal‑coated printed circuit board for harsh power‑plant cabinet conditions Weight: approx 0.70 kg

Variant distinction: ‑IS200AEPCH1ACC: Base AEPCH board assembly, suffix ACC denotes mature hardware revision with optimized noise‑immunity circuit ‑IS215AEPCH1DB: Upgraded complete assembly variant, suffix DB represents enhanced component layout, improved vibration resistance and updated FPGA baseline firmware; mechanical form‑fit is identical to IS200AEPCH1ACC, cross‑replacement requires project‑firmware validation before commissioning

Typical applications: generator static‑excitation thyristor‑bridge control, gas‑turbine control signal pre‑processing, steam‑turbine plant‑wide I/O data forwarding, compressor auxiliary‑system signal acquisition, power‑generation auxiliary‑system communication gateway, spare‑part replacement and retrofitting of existing Mark VIe installations.

Product status: Original OEM units, fully discontinued by GE Vernova. We supply surplus new stock and fully‑tested used‑refurbished spare units. Warranty is available for all delivered goods. Items are ready for international shipment.

Frequently Asked Questions Q1: What do suffix ACC and DB stand for? A: ACC is hardware‑revision code for IS200AEPCH1ACC base assembly. DB is revision code for IS215AEPCH1DB upgraded complete assembly with improved component robustness and FPGA firmware baseline. Full part‑number including suffix must be confirmed before replacement.

Q2: Can IS200AEPCH1ACC directly swap with IS215AEPCH1DB? A: They share identical mechanical form‑fit. Direct blind swap is not recommended. Cross‑model substitution must validate project firmware version, download matching parameters via ControlST, and verify IONet/Ethernet synchronization status after installation to avoid excitation‑bridge communication faults.

Q3: What is the difference between AEPCH series and AEPA series axis boards? A: AEPCH boards focus on high‑speed analog processing, network forwarding and excitation‑bridge firing‑pulse control. AEPA series are dedicated closed‑loop axis‑control boards for pitch or actuator position regulation. Hardware function, circuit layout and firmware are not interchangeable.

Q4: Which control system are these two boards compatible with? A: Designed for GE Mark VIe Speedtronic 6U‑VME rack systems, supports simplex and TMR redundant architecture. Not compatible with original Mark‑VI platform without hardware modification and firmware upgrade.

Q5: Does this board support hot‑swap operation? A: Hot‑swap is allowed under redundant TMR Mark VIe architecture. For non‑redundant simplex system, cut off rack power supply before module replacement to prevent unexpected excitation‑bridge control‑signal interruption.

Q6: What software is required for configuration and fault diagnosis? A: Parameter configuration, commissioning and fault‑log reading are completed through GE ControlST software suite. On‑board flash memory saves timestamped fault‑event records for troubleshooting. The hardware itself does not store user application project files.

Q7: Are IS200AEPCH1ACC and IS215AEPCH1DB still in production? A: Both boards are completely discontinued by GE Vernova. We provide original surplus new stock and fully‑tested refurbished spare parts for legacy power‑plant and energy‑system maintenance.

Q8: Why excitation‑bridge communication dropout occurs after board replacement? A: Common root causes: mismatched hardware revision suffix, incompatible firmware baseline, defective Ethernet/IONet cabling, shielding‑grounding defects, incomplete project‑parameter download via ControlST. Always verify full part‑number before installation and validate system synchronization status after hardware swap.

Q9: Do IS200AEPCH1ACC and IS215AEPCH1DB come with conformal coating? A: Yes, original units are conformal‑coated on PCB surface to resist moisture and corrosive gas inside power‑plant control cabinets.
