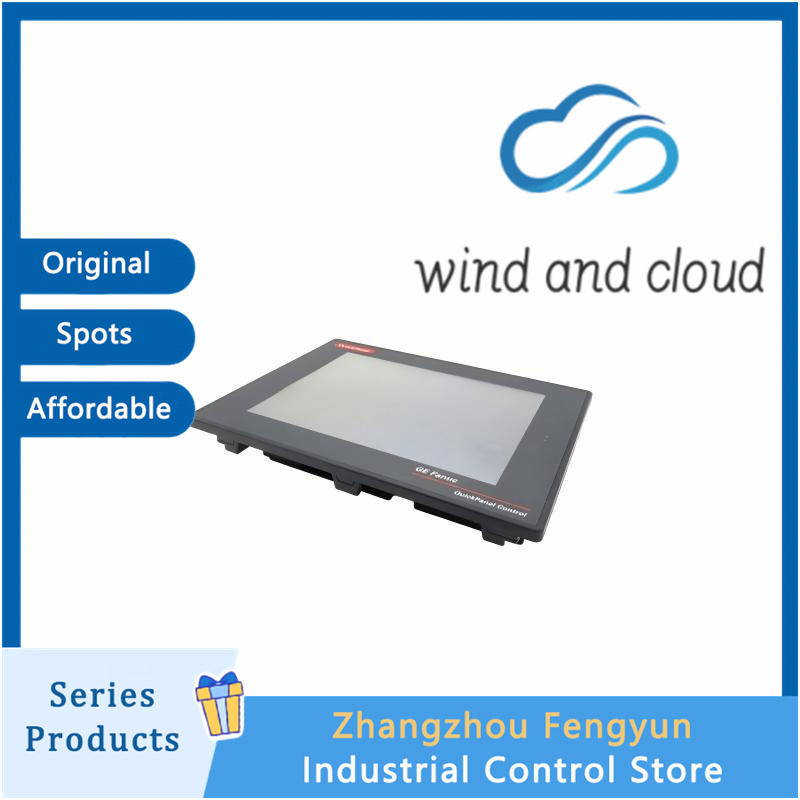

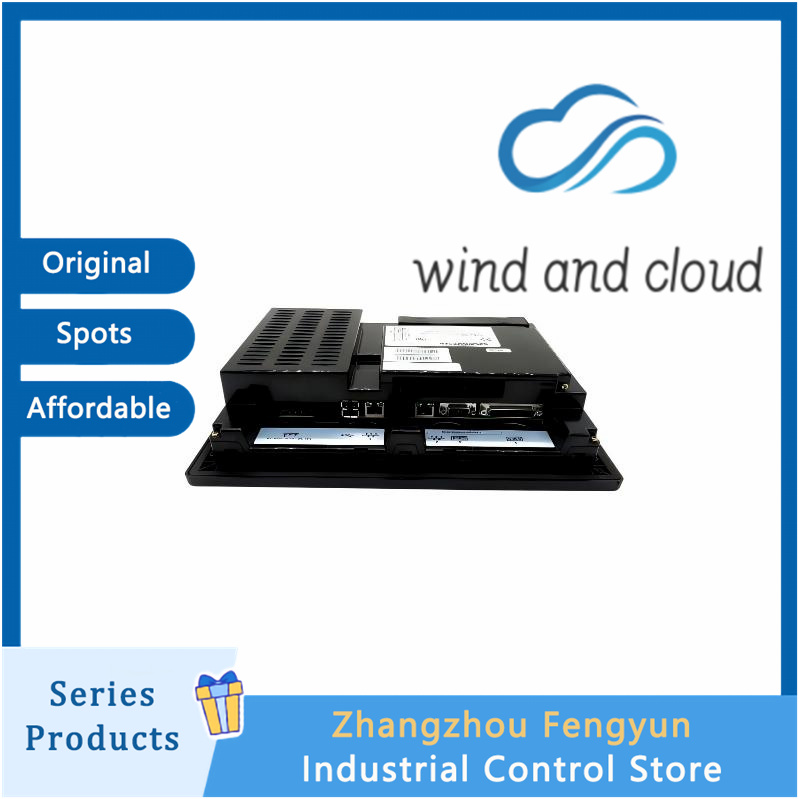

GE IC754CSL12CTD｜Industrial Panel Operation｜

PLC control application parameters
User program capacity: 128KB logical program; 64KB data memory
Programming languages: ladder diagram LD, function block FBD, structured text ST
Scanning speed: approximately<1ms/1K logical instructions
There is no onboard IO locally; remote IO modules must be connected externally without physical input/output points
Support GE Genius remote IO, Modbus RTU/TCP slave IO
Maximum supported variables: Boolean, integer, floating-point, recipe array; 512KB battery hold SRAM for power-off hold variable/recipe Qualitrol

Human machine interface HMI application parameters

Project parameters
Display screen 12.1 “TFT color SVGA 800 × 600
Touch screen resistance simulation touch screen, industrial panel operation
Backlight CCFL backlight (aging and yellowing are common faults of this model)
HMI function alarm, historical trend, formula management, data recording, CF card local storage log
CF card slot for storage media (program backup, image recovery); USB Host connected to USB flash drive for backup

Communication interface application parameters
Ethernet (dual 10/100M)
SRTP (GE native, compatible with RX3i/90-30)
Modbus TCP Master/Slave
Serial port RS232/RS485 (multiplexed)
Modbus RTU master/slave station; Genius； Programming Download
The highest baud rate is 115200
USB Host: external USB flash drive, keyboard and mouse; No USB device port, unable to download programs via USB

Environmental Application Parameters (Official Manual GFK-2847)
Project parameters
Working temperature: 0 ℃~+50 ℃ (inside the cabinet, panel installation)
Storage temperature -20 ℃~+70 ℃
Relative humidity 5-85% RH, no condensation
Panel protection front panel IP65/NEMA4X; There is no IP protection on the back of the machine (cabinet side)
Vibration IEC61131-2: 5-500Hz, 1g
Impact 15g, 11ms
Pollution level 2
Certification CE, UL, cUL; Non explosion proof equipment

Mechanical installation application parameters
Overall appearance: 192mm x 137mm x 36mm (width x height x depth)
Panel opening: 183.5 × 128.5 mm
Installation method: panel embedded installation; Also supports VESA75 wall bracket, does not support DIN rail installation
Weight: 0.8kg
Installation requirements: Leave ventilation and heat dissipation space at the rear of the cabinet; Prohibit sealed cabinets without heat dissipation

Typical Applicable Scenarios&Limitations

✅ fit:
Small and medium-sized standalone equipment integrated solution, combining HMI screen and local PLC control into one, without the need for an additional PLC host
Packaging machinery, water treatment, small assembly lines, replacement of old equipment spare parts
Docking third-party instruments and frequency converters through Modbus, while also performing visual and control functions
❌ unsuited:
Large multi axis high-speed motion control (without motion CPU, does not support GE motion module)
Explosion proof hazardous area
New project (EOL completed, no original spare parts available, CCFL backlight prone to aging, battery must be replaced regularly)
