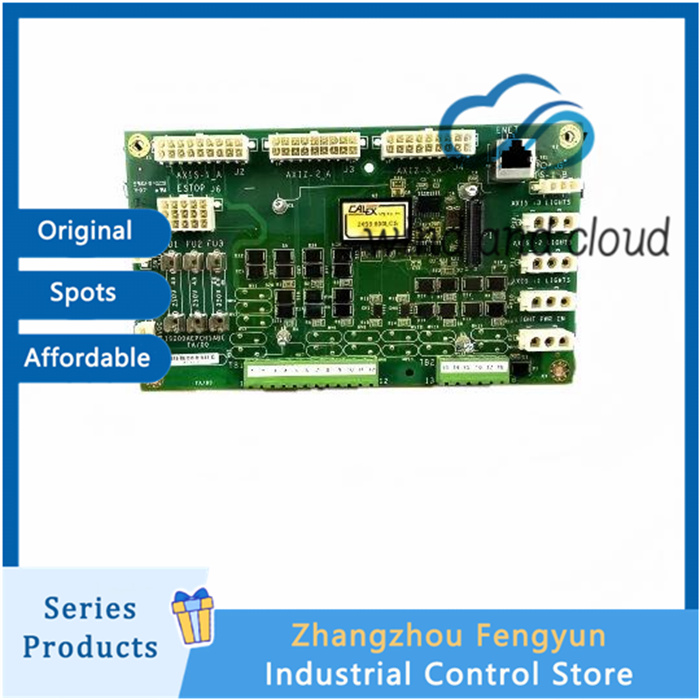

GE IS200AEPCH1ABC | Analog‑Ethernet Processor Control Board

IS200AEPCH1ABC is an AEPCH (Analog‑Ethernet Processor Control) hardware‑revision control PCB for GE Mark VIe Speedtronic control platform. Optimized for high‑speed analog signal processing and IONet/Ethernet communication handling, it undertakes real‑time data acquisition, logic processing and network data forwarding for gas‑turbine, steam‑turbine, compressor and power‑generation auxiliary control applications.

This board receives multi‑channel analog field sensor signals, discrete interlock and status feedback signals from plant field equipment. It executes local high‑speed signal conditioning, data conversion and pre‑processing algorithms, exchanges real‑time control data with main controller via IONet backplane and Ethernet interfaces. Comprehensive on‑board hardware diagnostics detect signal over‑range, wire breakage, communication link failure and internal hardware faults, storing timestamped fault events in onboard flash memory for post‑failure analysis via GE ControlST software. The PCB adopts conformal‑coating treatment for anti‑humidity and anti‑corrosion performance to adapt harsh cabinet operating environments of power‑plant sites. A daughter auxiliary sub‑board is mounted on main PCB to extend FPGA‑based logic and communication processing capacity.

Hardware specifications:
Full part identifier: IS200AEPCH1ABC
Form factor: Standard 6U VME rack‑mount PCB with integrated auxiliary daughter‑board
Compatible platform: GE Mark VIe Speedtronic control system, supports simplex and TMR triple‑modular‑redundant architecture
Communication interfaces: IONet backplane bus, industrial Ethernet for high‑speed control data exchange
Signal processing: Multi‑channel differential analog input circuits, over‑voltage and common‑mode noise suppression
On‑board resources: FPGA logic unit, flash memory for fault event logging, LED status indicators for power, communication and fault diagnosis
Backplane power supply: 24 VDC backplane power supply, typical power consumption approx 11 W
Operating temperature: ‑40°C ~ +70°C; storage temperature: ‑40°C ~ +85°C
Humidity: 5%‑95% non‑condensing environment
Conformal‑coated printed circuit board for harsh power‑plant cabinet conditions
Weight: approx 0.70 kg

Typical applications: gas‑turbine control signal pre‑processing, steam‑turbine plant‑wide I/O data forwarding, compressor anti‑surge system signal acquisition, power‑generation auxiliary system communication gateway, spare‑part replacement and retrofitting of existing Mark VIe installations.

Product status: Original OEM unit, fully discontinued by GE Vernova. We supply surplus new stock and fully‑tested used‑refurbished spare units. Warranty is available for all delivered goods. Items are ready for international shipment.

Frequently Asked Questions

Q1: What does suffix ABC stand for IS200AEPCH1ABC? A: ABC represents the specific hardware revision code of this AEPCH processor board. Different suffix variants correspond to component layout, FPGA firmware and circuit revisions. Full part number including suffix must be confirmed before replacement to avoid communication incompatibility.

Q2: What is the difference between AEPCH IS200AEPCH1ABC and AEPA series axis boards? A: IS200AEPCH1ABC is AEPCH analog‑ethernet processor board focusing on high‑speed signal pre‑processing and network data forwarding. AEPA series boards are dedicated closed‑loop axis control boards for pitch or actuator position regulation. Hardware function, circuit layout and firmware are not interchangeable.

Q3: Which control system is IS200AEPCH1ABC compatible with? A: Designed for GE Mark VIe Speedtronic 6U‑VME rack systems, supports simplex and TMR redundant architecture. Not compatible with original Mark‑VI platform without hardware modification and firmware upgrade.

Q4: Does this board support hot‑swap operation? A: Hot‑swap is allowed under redundant TMR Mark VIe architecture. For non‑redundant simplex system, cut off rack power supply before module replacement to prevent unexpected control‑signal interruption.

Q5: What software is required for configuration and fault diagnosis? A: Parameter configuration, commissioning and fault‑log reading are completed through GE ControlST software suite. On‑board flash memory saves timestamped fault‑event records for troubleshooting. The hardware itself does not store user application project files.

Q6: Is IS200AEPCH1ABC still in production? A: This board is completely discontinued by GE Vernova. We provide original surplus new stock and fully‑tested refurbished spare parts for legacy power‑plant and energy‑system maintenance.

Q7: Why communication dropout occurs after board replacement? A: Common root causes: mismatched hardware revision suffix, defective Ethernet/IONet cabling, shielding‑grounding defects, incorrect firmware version, incomplete project parameter download via ControlST. Always verify full part‑number before installation and download matching configuration parameters after hardware swap.

Q8: Does IS200AEPCH1ABC come with conformal coating? A: Yes, original unit is conformal‑coated on PCB surface to resist moisture and corrosive gas inside power‑plant control cabinets.
