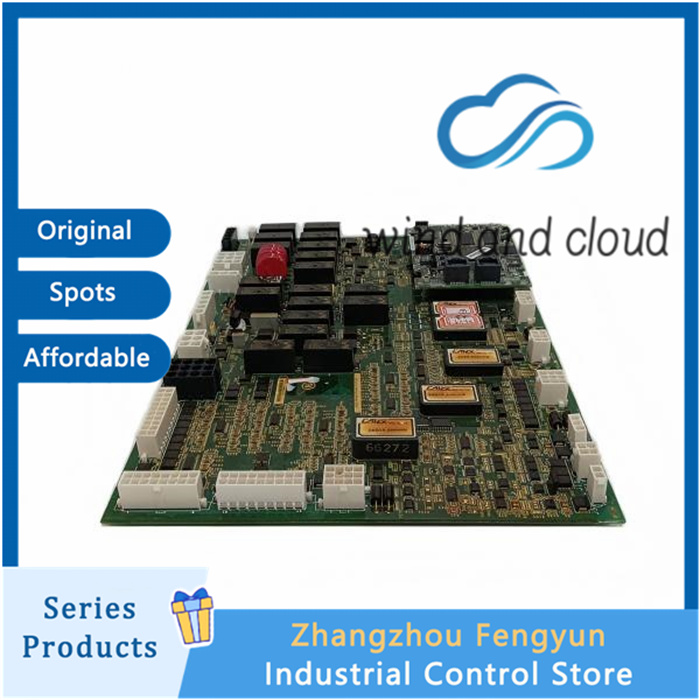

GE IS200AEPAH1ACB｜AEPA Alternative Energy Pitch Axis I/O Board for Mark VIe Speedtronic Control System

GE IS200AEPAH1ACB (AEPA‑Alternative Energy Pitch Axis) is a specialized 6U‑VME I/O board for GE Mark VIe Speedtronic control platform. Originally designed for wind turbine pitch‑axis closed‑loop control, it is also widely applied for auxiliary axis and actuator control in gas‑turbine, steam‑turbine and compressor installations. This board is manufacturer discontinued and serves as critical spare part for legacy energy‑sector equipment maintenance.

This board collects analog feedback, encoder position signals and discrete status signals from field pitch‑mechanism sensors. It executes local closed‑loop calculation and outputs analog and discrete control commands to servo valves and drive units. On‑board hardware diagnostics detect wire breakage, short‑circuit and encoder faults, storing event timestamps in on‑board flash memory for post‑fault analysis via ControlST software. The PCB is coated with conformal coating for anti‑corrosion and anti‑humidity performance for harsh cabinet environments.

Hardware specifications: Model: IS200AEPAH1ACB Form factor: Standard 6U VME rack‑mount PCB Platform compatibility: GE Mark VIe Speedtronic control system Analog inputs: 8 isolated channels, supports 4‑20mA / 0‑10V sensor signals Analog output: 1 channel for servo‑actuator drive Encoder interfaces: incremental and absolute encoder input for position feedback Discrete I/O channels for interlock, limit switch and safety shutdown logic Safety capability: meets SIL‑2 safety requirements for pitch safety stop circuit Backplane power supply: 24VDC, typical power consumption approx 10W Operating temperature: ‑40°C ~ +70°C; storage temperature: ‑40°C ~ +85°C Humidity: 5%‑95% non‑condensing relative humidity Weight: approx 0.65 kg Conformal coated circuit board for anti‑moisture and anti‑corrosion protection

Typical applications: wind turbine pitch‑axis control, gas‑turbine auxiliary axis control, steam‑turbine valve position control, compressor anti‑surge actuator control, retrofitting and spare‑part replacement for existing Mark VIe installations.

Product status: Original OEM unit, fully discontinued by GE‑Emerson. We supply surplus new stock and fully tested used‑refurbished spare units. Warranty is available for all delivered goods. Items are ready for international shipment.

Frequently Asked Questions

Q1: What does AEPA stand for in IS200AEPAH1ACB? A: AEPA means Alternative Energy Pitch Axis. It was originally developed for wind turbine blade pitch‑axis closed‑loop control, and can also be used for turbine auxiliary axis control tasks.

Q2: Which control system is IS200AEPAH1ACB compatible with? A: Designed for GE Mark VIe Speedtronic control system. It fits 6U VME backplane rack. It is not compatible with standard Mark VI without hardware adaptation.

Q3: Does this board support hot‑swap operation? A: Hot‑swap is supported under redundant Mark VIe rack architecture. For non‑redundant configurations, power‑off the rack before module replacement to avoid unexpected equipment action.

Q4: What software is used for configuration and fault diagnosis? A: Configuration, parameter setting and fault log reading are completed via GE ControlST software suite. On‑board flash memory stores fault event logs with time stamp for troubleshooting.

Q5: Can IS200AEPAH1ACB work for gas‑turbine applications instead of wind turbines? A: Yes. Besides wind pitch control, it can be deployed for turbine auxiliary axis, valve position and compressor anti‑surge actuator control after proper parameter configuration.

Q6: Is IS200AEPAH1ACB still in mass production? A: This module is completely discontinued by GE‑Emerson. We provide original surplus new stock and fully tested refurbished spare parts for legacy energy‑system maintenance.

Q7: What common faults may occur after board replacement? A: Common issues: loss of position feedback, abnormal actuator oscillation, safety interlock alarm. Verify encoder wiring, analog signal wiring, interlock loop and project parameter settings. Hardware alone does not store user application parameters.

Q8: Does the board come with conformal coating? A: Yes, original hardware has conformal coating on PCB surface, improving performance under high‑humidity and corrosive cabinet environment.
