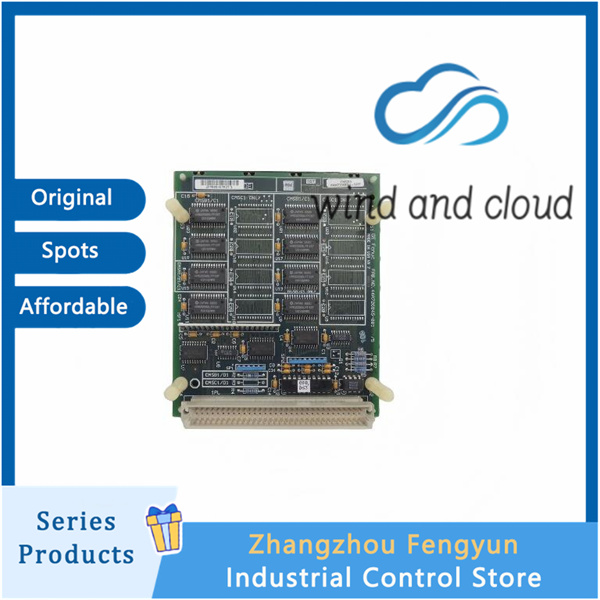

Module type: CPU Daughter Board Memory Expansion Board (CMOS RAM)

Applicable objects: IC697CP771, IC697CP772, IC697PCM711 co processors, directly plugged into the CPU/PCM body, sharing the same rack slot without occupying additional VME slots

Storage capacity: 256K bytes CMOS RAM, can be used for program logic storage+data storage, software allocation purposes

Other models in the same series:

IC697MEM713：64KB

IC697MEM715：128KB

IC697MEM719：512KBQualitrol

Status: The original factory has stopped production, and the market is circulating dismantled/refurbished inventory parts

Electrical and Power Consumption

Power supply: taken from the 5V bus of the CPU backplane

Power consumption: 1.1W

Memory power failure maintenance: relies on CPU/PCM body lithium battery IC697ACC701, the module itself does not have a battery

Battery life: nominal shelf life of 10 years at 20 ℃ environment; Power outage data storage typically lasts for 6 months, and memory program data may be lost due to battery aging

Features

Expand the user logic, registers, and variable data memory of CPU 771/772

Support PCM coprocessor program and data memory expansion

CPU automatically performs memory checksum and error detection; Power on/reset to perform memory self-test

Tool free insertion and removal, replaceable daughter board on site

No external indicator light, status is read by CPU system diagnosis

environmental parameters

Working temperature: 0 ℃~+60 ℃

Storage temperature: -40 ℃~+85 ℃

Humidity: 5-95% RH, no condensation

Vibration: 2g, 10-500Hz

Protection: Board, IP20 is used inside the rack
