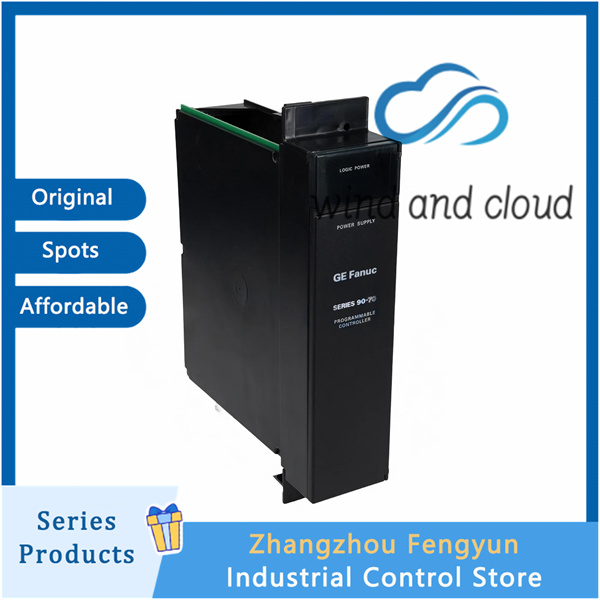

protection mechanism

Overvoltage protection: output>6.2V electronic lock cut-off output, protecting the backplane module

Overcurrent/short circuit protection: 12A electronic current limiting protection, not a blown fuse, can automatically recover after the fault is removed

Built in input side fuse; Convection heat dissipation, fanless

Panel LED

AC OK (green): Input power supply is normal

Fault (red): Overvoltage, overcurrent, overheating fault alarm

terminal block

L1, N: Communication input; It can also be connected to DC 100-150VDC

PE protection ground: It is recommended to use AWG # 12 copper wire to connect the rack ground, with high anti-interference requirements

Recommended signal wire AWG # 16 copper wire

environmental conditions

Working temperature: 0 ℃~+60 ℃

Storage temperature: -40 ℃ to+85 ℃

Humidity: 5-95% RH, no condensation

Vibration: 2g, 10-500Hz

Protection: IP20 (inside the rack)

Certification: UL, CSA, CE

Key usage points

Forced installation of the leftmost slot of the rack, ordinary I/O slots cannot work; Support cable expansion to power the second rack, but the total load cannot exceed the upper limit of 56W.

The selection must account for the total 5V power consumption of all modules in the rack, and the total must not exceed 56W; for large configuration upgrades, use IC697PWR720 (100W/20A).

Only provide power to the PLC backplane logic, external independent power supply is required for on-site sensors and solenoid valves 24V.

The F version belongs to an earlier hardware version, and subsequent upgrades to the G/H version will maintain the same electrical parameters, mainly improving the reliability of internal components.
