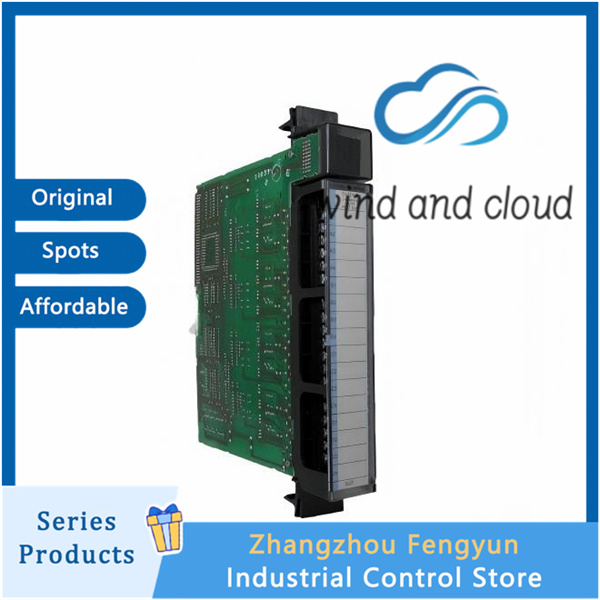

Module type: transistor discrete output module (drain/positive logic)

Adaptation system: GE Series 90-70 PLC rack, single slot installation

Output points: 16 points; Divided into 4 isolation groups, each with 4 points

No dip switch, no jumper, all software is configured with I/O address es. apterau

Electrical core parameters

Parameter indicators Rated voltage DC24V/DC48V Operating voltage range DC20-60V Single point continuous current 2A/Point grouping maximum total current 4A/Group (4-point total) Surge current maximum 20A, continuous 20ms (suitable for inductive loads of solenoid valves and contactors) On voltage drop maximum 0.8V (internal resistance 0.4 Ω) Turn off leakage current ≤ 1mA Response time Open ≤ 2ms; Turn off ≤ 2ms Backboard 5V Bus power consumption 0.15A Group fuse, built-in 10A independent fast melting fuse, with fuse fault LED indicator. apterau

Isolation specifications

On site output ↔ PLC backplane logic: 1500V DC isolation

Isolation between groups: 500V

Indicator lights and hardware

Each independent LED status indicator light; Additional fuse fault alarm LEDes. apterau

Mechanical error proof keyway to prevent incorrect insertion of modules. apterau

I/O mapping: occupies 2 16 bit output words (1 bit corresponds to 1 output point)

environmental conditions

Working temperature: 0 ℃~+60 ℃

Storage temperature: -40 ℃ to+85 ℃

Vibration: 10-500Hz, 2g

Protection level: IP20 (inside the rack)

Typical load

Drivable: DC solenoid valve, contactor coil, indicator light, DC small actuator; Suitable for inductive loads, with strong surge tolerance
