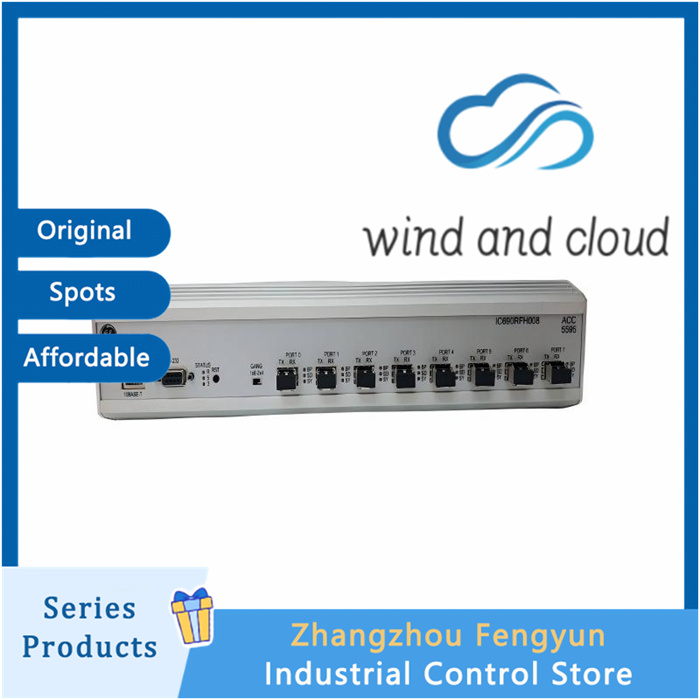

GE IC690RFH008｜8 Multimode Reflective Memory Hub｜

Parameter
Table
Item Parameter
Port 8 × ST multimode fiber optic interface
5Mbps speed, token passing reflective memory protocol
Fiber multimode, 850nm; single segment maximum 300m
Topological star network; Cascadable, with a maximum of 256 nodes
Fault bypass automatically bypasses fault nodes without network interruption
Power supply 220VAC, power consumption approximately 25W
Install a 19 inch 1U rack mount
Working temperature: 0 ℃~+65 ℃
main purpose
Used for reflective memory real-time networks, often used for simulation, testing, and high-speed distributed control systems;
Connect multiple reflective memory cards to the same real-time shared memory network to achieve microsecond level data synchronization between multiple controllers;
Not a regular Ethernet switch, it is a dedicated real-time hardware network and cannot be directly connected to a regular PLC Ethernet port.
