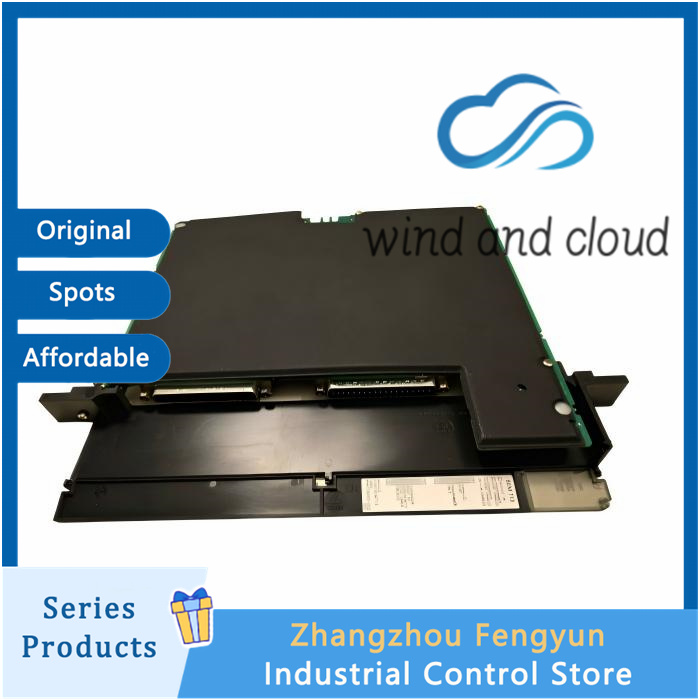

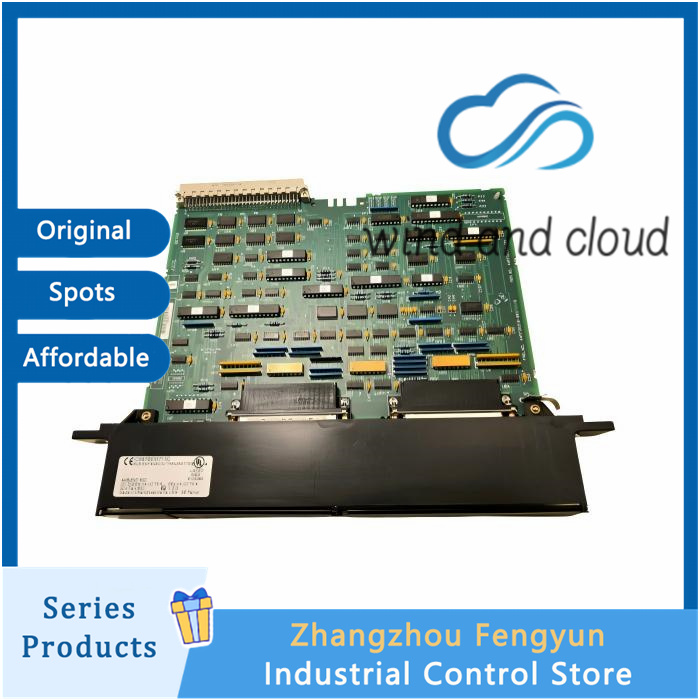

GE IC687BEM713｜Bus Expansion / Transmitter Module｜
Core technical parameters
Bus communication
Bus type: Genius Bus (Genius I/O bus), master station mode
Number of bus nodes: A single Genius bus can support up to 32 Genius nodes
Bus medium: shielded twisted pair cable
Communication rate: Fixed 153.6 kbps (Genius bus fixed baud rate, non modifiable)
Maximum bus distance:
No repeater: 2000 meters
Using Genius repeater IC670ACC001, with a maximum of 8 relays and a maximum extension distance of 6400 meters
I/O data capacity: maximum 4096 discrete I/O points; Analog quantity up to 512 inputs/512 outputs
Supporting devices: FieldControl (IC670 series), Genius I/O modules, Genius smart meters, Genius motor protectors, etc
Supports Genius Global Data functionality, allowing nodes to exchange data directly without the need for CPU involvement
Hardware, Rack, and Power Consumption
Rack: GE Series 90-70 PLC rack, 5-slot/10 slot rack, any regular I/O slot
Backboard power supply: Powered by the 90-70 rack backplane, no external power supply required
Backplane power consumption: 5V DC, maximum 1.1A
Interface: DB-9 female Genius bus interface; On board dip switch is used to set module parameters
Status LED: PWR, RUN, OK, BUS FAULT; Used to indicate module operation, bus failure, and node loss
Firmware: onboard EPROM firmware; Common firmware versions V4.30 and V4.40; Replacing spare parts requires firmware version compatible with CPU firmware
Diagnostic function
Bus fault detection: Bus short circuit, disconnection, node loss, node fault reporting to PLC system status register
Support hot detection: node online/offline recognition; The faulty node can be bypassed, while the other nodes continue to operate
Provide internal fault status words for PLC, and the program can read the status of the bus and various slave nodes
Support HHP handheld programmer debugging Genius bus network
Environmental mechanical specifications
Installation: 90-70 PLC rack slot, installed inside the control cabinet, IP20
Working temperature: 0 ℃~+60 ℃
Storage temperature: -40 ℃~+85 ℃
Humidity: 5-95% RH, no condensation
Certification: UL, CE, CSA
