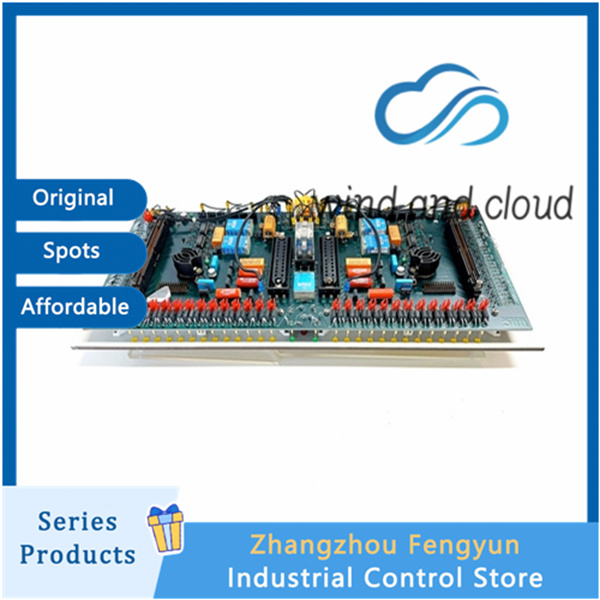

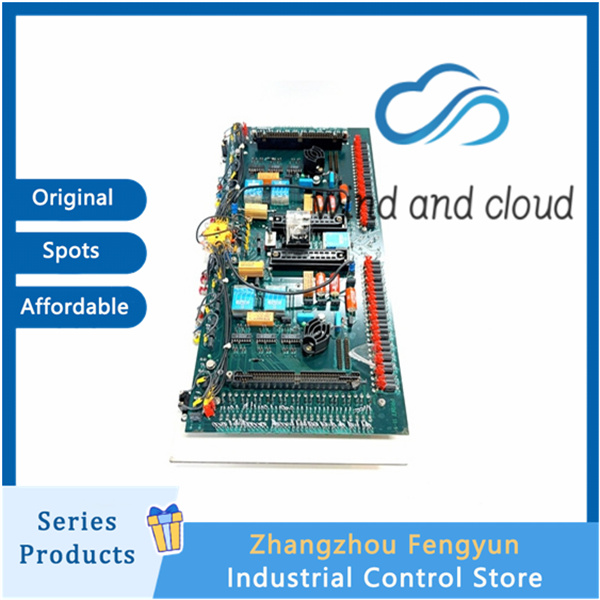

ABB BDD110 HNLP205879R1｜Control Module｜
BDD110 HNLP205879R1
Parameter
Channel configuration: 16 DI (DC24V active input)+16 relay DO passive dry contacts
Relay contact capacity: AC250V/5A, DC30V/5A, can directly drive contactors, solenoid valves, and alarm lights
Power supply: DC24V control power supply, with a total power consumption of approximately 15W
Insulation isolation: 2500VAC high voltage isolation between the on-site signal side and the bus control side
Communication interface: DDCS fiber optic bus, connected to BCU-12 main control unit
environmental specifications
Operating temperature: -20 ℃~+60 ℃ (forced air cooling of frequency converter cabinet)
Storage temperature: -40 ℃~+70 ℃
Full board three proof coating, suitable for multiple dust and oil pollution conditions in metallurgy, mining, and power plants
Installation method: Standard DIN rail installation or rack slot fixation
Size and weight: 200 × 150 × 65mm, net weight 1.2kg
Application scenarios
ABB ACS800 multi drive steel rolling main drive, coiler, and hoist frequency conversion cabinet expansion spare parts;
Peripheral interlocking collection of multi drive systems for mining elevators, port cranes, and heavy-duty cement ball mills;
Fault alarm of high-power induced draft fan and primary fan high-voltage frequency conversion cabinet in power plant, and expansion of fan control;
Renovation and maintenance of frequency conversion equipment for paper and chemical fiber multi motor synchronous production lines.
