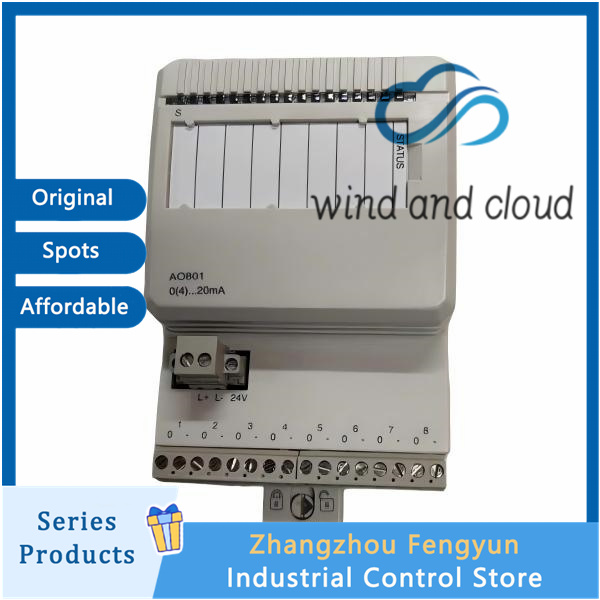

ABB AO801｜Analog Output 8 Ch｜

AO801

Function
D/A digital to analog conversion
Receive digital adjustment instructions issued by the controller, convert them into standard industrial analog current signals, and drive on-site actuators such as electric control valves, pneumatic valve positioners, frequency converters, servo proportional control, and other closed-loop adjustment equipment.
Fault safety output OSP
Built in output switching protection OSP, when the module fails or the bus is disconnected, all channel outputs can be automatically locked to the preset safe value to avoid equipment loss of control and tripping.
Full channel hardware protection
Each output comes with short-circuit current limiting protection, and if the output terminal is mistakenly short circuited to 24V ground/power, the module will not be burned out; Supports on-site cable wiring up to 600 meters in length.
Periodic self diagnosis
Real time monitoring of backplane power supply, channel circuit disconnection, output overload, panel STATUS indicator light alarm, and upper level Control Builder software can read fault codes.
Hot swappable compatibility
When the cabinet is not shut down, separate module plugging and replacement does not affect the operation of other I/O channels in the same station.

Parameter
Channel configuration: 8-channel unipolar analog output
Standard signal: 4-20mA/0-20mA (without HART protocol)
Conversion accuracy: 12 bit resolution, machine error ≤ 0.1% FS
Load capacity: Maximum current output load of 850 Ω
Isolation specification: Channel grouping with ground isolation, insulation withstand voltage of 500VAC
Response speed: Single channel update cycle of 1ms, signal rise time of 10 μ s
Power consumption of the whole machine: 3.8W, powered by 24VDC from S800 backplane
environmental specifications
Operating temperature: 0 ℃~+55 ℃
Storage: -40 ℃~+85 ℃
Humidity 5%~95% RH, no condensation, installed in IP20 cabinet
Size and weight: 86.1 × 58.5 × 110mm, net weight 0.24kg
