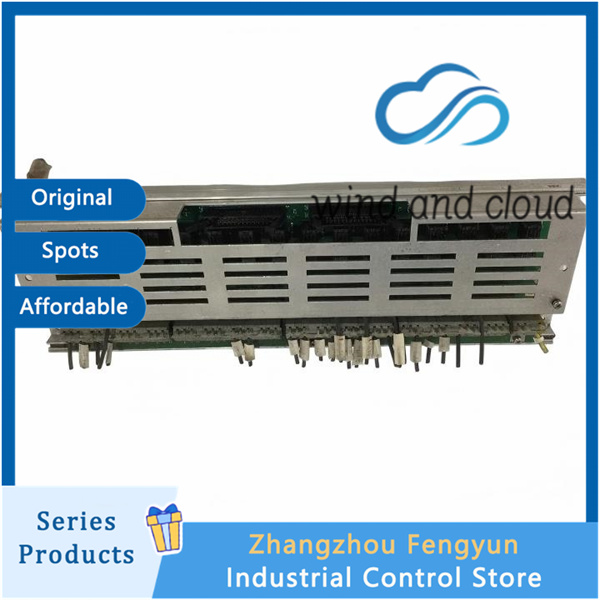

ABB ARC093AV1｜Control Module｜

ARC093AV1

Function
Multi channel analog signal acquisition and output
Integrate 4 analog inputs AI+2 analog outputs AO, collect on-site temperature, pressure, speed, and bus voltage signals of the frequency converter, and output 4-20mA/0-10V to the upper DCS (such as AC800F/800xA);
High frequency pulse signal processing
Supports up to 50kHz high-frequency speed pulse acquisition, compatible with motor encoder and speed generator MPU signals, for speed closed-loop operation;
Fault diagnosis and circuit protection
Each channel is equipped with hardware detection for short circuit, overvoltage, and disconnection. If the signal is abnormal, it will be immediately uploaded to the main control unit and the pulse will be blocked to protect IGBT power devices;
Communication interaction
The onboard internal bus interface communicates with the main control board of the frequency converter DCU, and supports Modbus RTU external docking with third-party control systems;
Isolation and anti-interference
Simulate electrical isolation between the channel and power circuit, isolate high-power IGBT and contactor electromagnetic interference inside the frequency conversion cabinet, and avoid signal drift.

Parameter
Signal channel configuration
AI: 4-channel, supporting 4-20mA/0-10V
AO: 2 channels, supporting 4-20mA/0-10V
Acquisition accuracy: 16 bit analog-to-digital conversion, full temperature range error ≤ 0.15% FS
Pulse frequency: maximum input 50kHz (speed measurement/encoder)
Power supply: 24VDC DC (internal auxiliary power supply of frequency converter)
Isolation withstand voltage: Channel to ground 1500VAC

Working environment
Operating temperature: -10 ℃~+60 ℃ (forced air cooling environment for frequency conversion cabinet)
Humidity 5%~95% RH No condensation, with three anti coating resistant to dust and oil stains
Installation method: internal rack slot installation of frequency converter power unit
