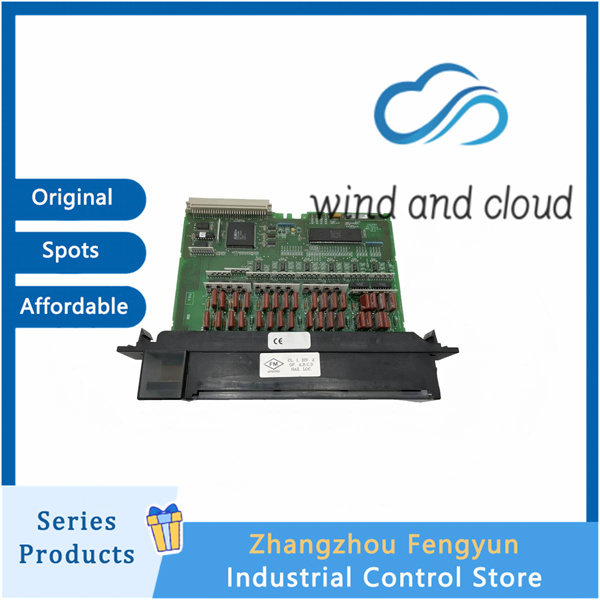

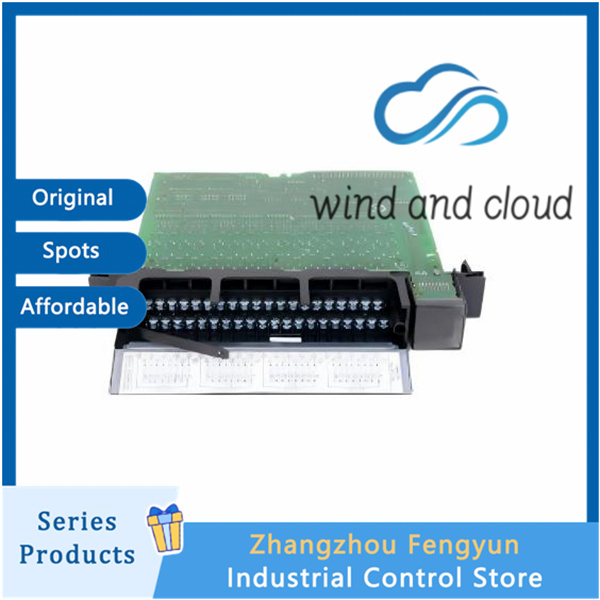

GE IC697MDL250｜Discrete Input Module｜
Module type: 120VAC 32 point discrete input module, 4 sets of isolation, 8 points per set, single slot position
✅ Core Electrical
Rated input: 120VAC, 47-63Hz
Conduction threshold: 75-132VAC; Shutdown threshold: 0-25VAC
Rated input current: 10mA (typical); Conducting current 6-15mA; Turning off leakage current 0-3mA
Input filtering: 20ms (anti shake)
Backboard 5VDC power consumption: 0.35A
Isolation and Voltage Resistance: On site Backboard 1500V RMS; 500V RMS between groups
Input type: IEC Type2, compatible with 2/3 line AC proximity switches, buttons, limit switches
✅ Hardware Structure
Points: 32DI, 4 electrical isolation groups x 8 points, each group can be connected to different AC phases
Status: Independent LED indicator lights for each channel
Configuration: Software configuration of I/O address, no dialing, no jumper, mechanical error prevention key
Compatible rack: GE 90-70 series rack, occupying 1 slot
✅ environmental conditions
Working temperature: The cabinet operates between 0-60 ℃; Expansion -40~+70 ℃
Storage temperature: -40 ℃ to+85 ℃
Humidity: 5-95% RH, no condensation; Protection IP20 (for use inside cabinets)
Weight: Approximately 0.3kg
