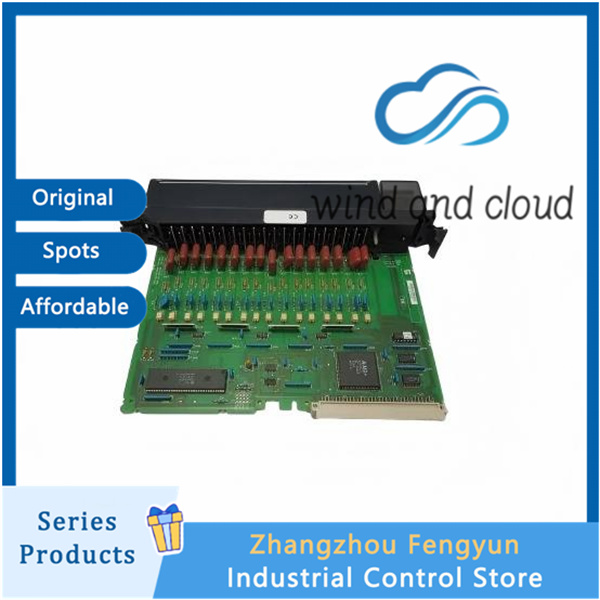

Response time
ON response: ≤ 10ms (including RC filtering)
OFF response: ≤ 10ms
Filtering method: Hardware RC filtering, resistant to power frequency interference
Electrical and Backboard
Backboard 5V current: approximately 0.5A
The module has no external auxiliary power supply, and the input circuit power supply is provided by on-site 120V AC
Isolation level: Input back panel 1500V AC (1 minute); Inter group isolation 1500V AC
Common mode rejection: ≥ 60dB @ 50/60Hz
Mechanical and Hardware
Slot: Single slot, can be installed in CPU rack, expansion rack, Genius remote rack
Wiring method: Removable terminal block (2 sets of common terminals, 8 points per set share 1 COM)
Status indicator: Module OK light+16 channel status LED (independent indication for each point)
Weight: Approximately 0.3kg
Size: Standard 90-70 single slot module (width 127mm x height 140mm x depth approximately 70mm)
environmental conditions
Working temperature: 0~+60 ℃
Storage temperature: -40 ° C~+70 ° C
Relative humidity: 5-95% RH, no condensation
Vibration: Complies with IEC 60068-2-6
Certification: UL, CSA, CE
PLC memory mapping
Occupation: 16 point discrete input% I, refreshed per CPU scan cycle
No analog mapping, no output mapping
Support module level self diagnosis (reporting fuse/communication faults)
software configuration
Configuration software: Logicmaster 90-70/CIMPLICITY Control
Software configuration, no hardware DIP switch for dialing code
Support input state force function
