GE H201TI｜Essential DGA Monitoring For Transformers｜

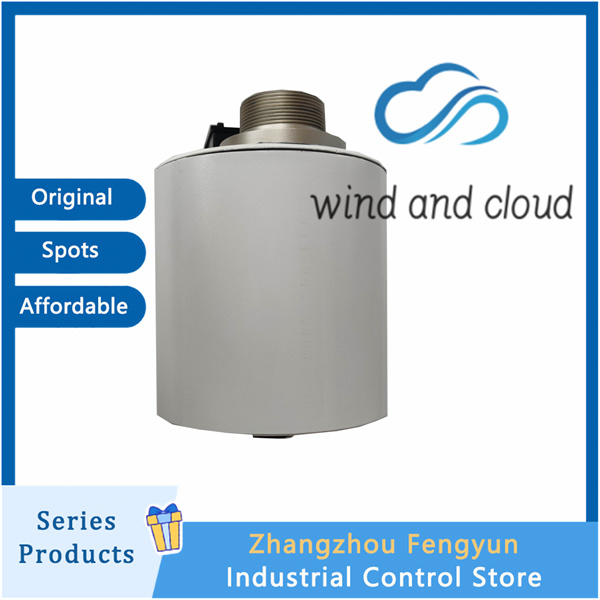

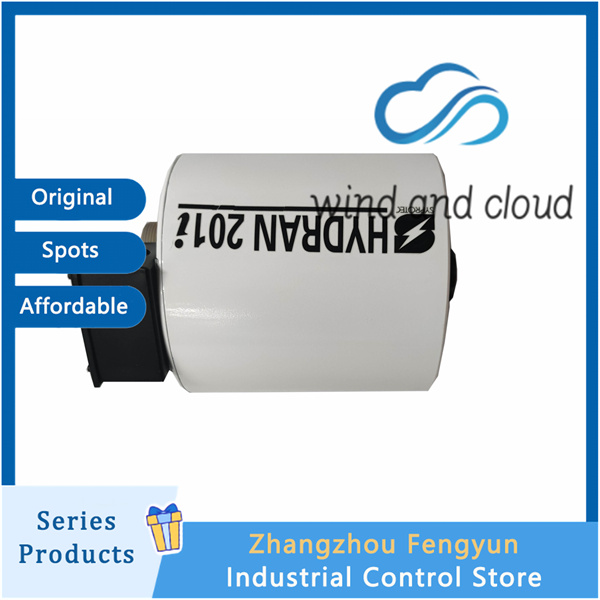

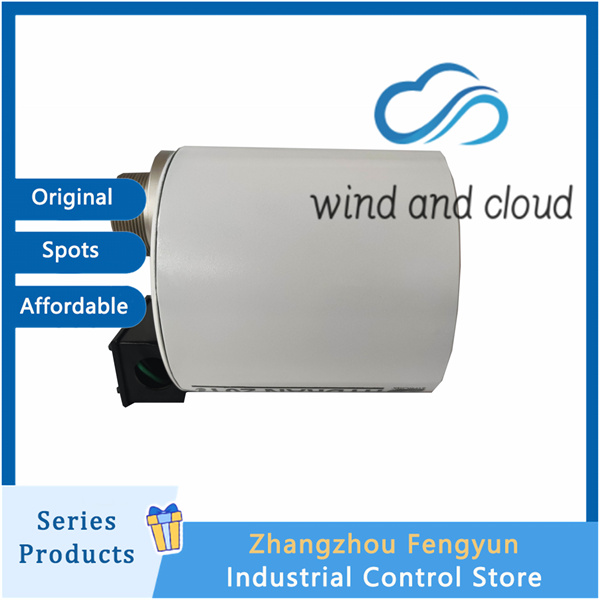

The GE Hydran 201Ti is a compact online Dissolved Gas Analysis (DGA) monitor designed for continuous transformer condition monitoring. It provides early warning of developing transformer faults by measuring dissolved gases in insulating oil, helping utilities and industrial operators reduce unexpected outages and maintenance costs.
Main Functions
Continuous DGA Monitoring
The monitor continuously measures the concentration of key fault gases dissolved in transformer oil. It mainly detects:
Hydrogen (H₂) — indication of general transformer faults
Carbon Monoxide (CO) — overheating of paper insulation
Acetylene (C₂H₂) — arcing faults
Ethylene (C₂H₄) — overheating of oil
Its composite-gas sensor uses fuel-cell technology and provides the well-known “Hydran gas value,” recognized under IEEE C57.104 standards for transformer diagnostics.
Key Features
Dynamic Oil Sampling
Single-valve installation
No external pump required
No additional piping needed
Simplified installation and maintenance
Configurable Alarm System
The device supports two alarm levels:
Alert
Alarm
Alarm conditions can be configured based on:
Gas concentration (ppm)
Rate of Change (ROC) per hour
ROC per day
Automatic self-diagnostics run every 15 days and can detect:
Power failure
Closed oil valve
Sensor failure
Battery replacement requirement
Communication Interfaces
The monitor supports multiple communication methods:

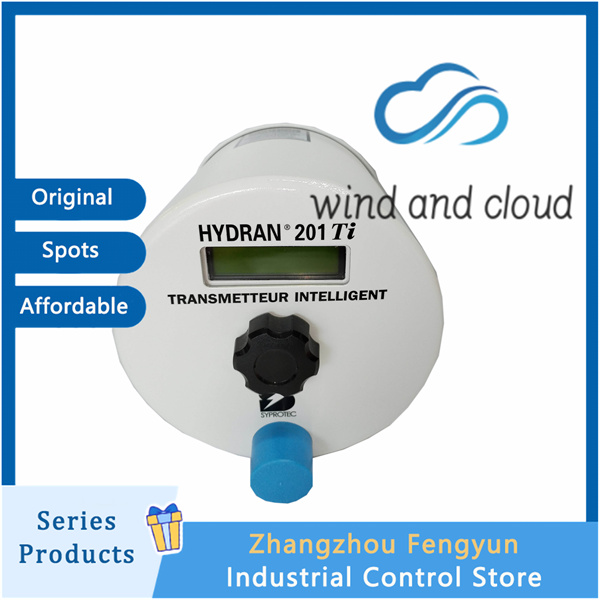

Local LCD display for real-time gas ppm values
4–20 mA analog output
RS-485 isolated serial communication
Modbus protocol
Hydran proprietary protocol
Three dry-contact relay outputs:
2 gas alarm relays
1 service alarm relay
