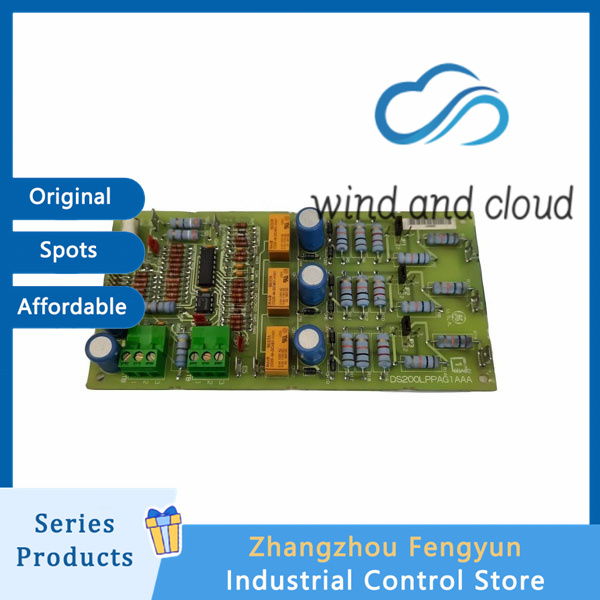

GE DS200LPPAG1AAA｜Line Protection Panel Board｜
1. Protection function
Monitoring objects: three-phase voltage, current, frequency, phase balance
Protection mechanism: overcurrent, overvoltage, undervoltage, grounding, phase loss, phase imbalance, frequency abnormality
Action output: trip command, alarm contact, fault log recording
2. Electrical specifications
System input voltage: 200-600 VAC (50/60 Hz)
Auxiliary power supply:+5V (backplane), 24V DC (IO/sensor)
Power consumption: approximately 18W
Communication interface:
Ethernet: 10/100 Base-T (Modbus TCP/IP)
RS-485: Modbus RTU (diagnostic/configuration)
Mark V Backplane: 10Mbps Private Protocol
3. Environment and Physics
Working temperature: -40 ° C~+70 ° C (non condensing)
Storage temperature: -40 ° C~+85 ° C
Humidity: 5% -95% (non condensing)
Size: 175 × 120 × 35 mm (single slot VME)
Weight: Approximately 0.45kg
Protection level: IP20 (cabinet installation)
4. Diagnosis and redundancy
Status LEDs: 4 (PWR/RUN/AULT/ALARM)
Fault log: locally stored, supports upper computer reading
Redundancy support: Mark V TMR triple redundancy architecture, supporting hot swapping
