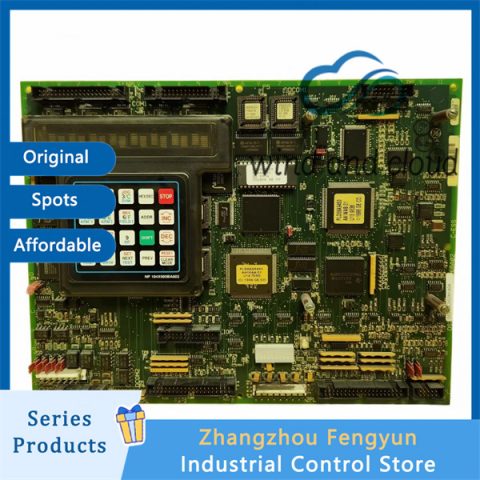

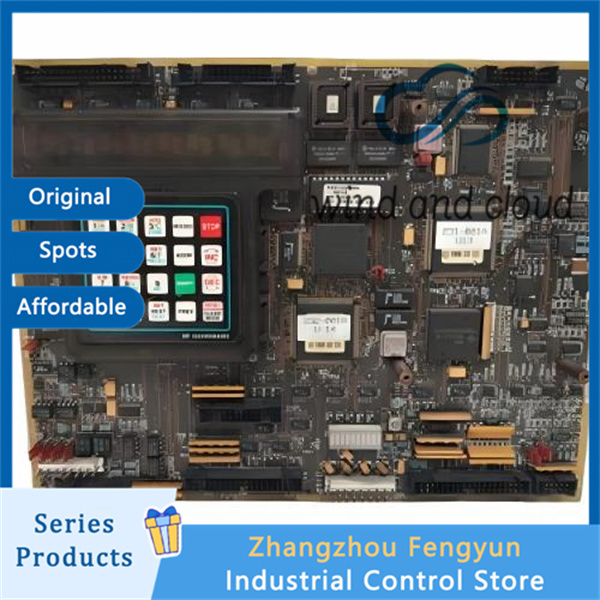

GE DS200LDCCH1AKA｜Drive LAN Control Board｜
1. Processor and Memory
Main processor: 16 bit dedicated industrial MCU, 20MHz
On chip processors: 4 (LAN control LCP, driver control DCP, communication MCP, fault diagnosis FCP)
Program storage: 64KB EPROM
Configuration storage: 16KB EEPROM
Operating memory: 8KB RAM
2. Electrical specifications
Backboard power supply:+5V DC
Auxiliary power supply: 24V DC (LVDT excitation/IO)
Power consumption: approximately 20W
Communication bus:
Mark V Backboard: 10Mbps
RS-485：Modbus RTU
RS-232：9600bps，8N1
Ethernet: 10/100 Base-T
3. Digital IO and interfaces
Digital input DI: 32 channels
Digital output DO: 16 channels
LVDT interface: 4 channels
Jumper configuration: 14 pieces
4. Environment and Physics
Working temperature: -30 ° C~+70 ° C
Storage temperature: -40 ° C~+85 ° C
Humidity: 5% -95% (non condensing)
Size: 175 × 120 × 35 mm
Protection level: IP20 (cabinet installation)
5. Diagnosis and redundancy
Status LEDs: 4 (PWR/RUN/AULT/BUS)
Fault log: locally stored, supports upper computer reading
Redundancy support: Mark V TMR triple redundancy architecture, supporting hot swapping
DS200LDCCH1AKA
