GE DS200SI0CG1AEA｜Input/Output Module｜
Backboard power supply:+5V, ± 15V DC (system bus power supply)
Power consumption: ≤ 8W
Signal isolation: 1500V AC isolation between ports/field and logic
Data format: 5-8 data bits, 1-2 stop bits, parity check (even/odd/none)
Serial protocol: RS-232/RS-422/RS-485 configurable
Connector: 9-pin D-sub (DB9) × 4 (independent isolation channel)
Supported protocols: Modbus RTU, ASCII, custom serial port protocol
Diagnostic LED: Tx/Rx/fault indicator light for each port
Size: Standard DS200 board (approximately 215 × 125 × 60 mm)
Net weight: approximately 0.75 kg
Working temperature: -40 ℃~+70 ℃ (without condensation)
Storage temperature: -40 ℃~+85 ℃
Humidity: 5% -95% RH (non condensing)
Protection level: IP20 (installed inside the cabinet)
Core function: Provide isolated serial communication for the Mark V system, connecting HMI, relays, sensors, and third-party devices
System adaptation: GE Mark V gas/steam turbine control, generator excitation system, power plant automation
Redundancy support: Compatible with TMR/dual redundancy systems, supports hot plugging (under redundant configuration)
Diagnostic maintenance: onboard self-test (BIST), port level fault indication, ToolboxST remote monitoring

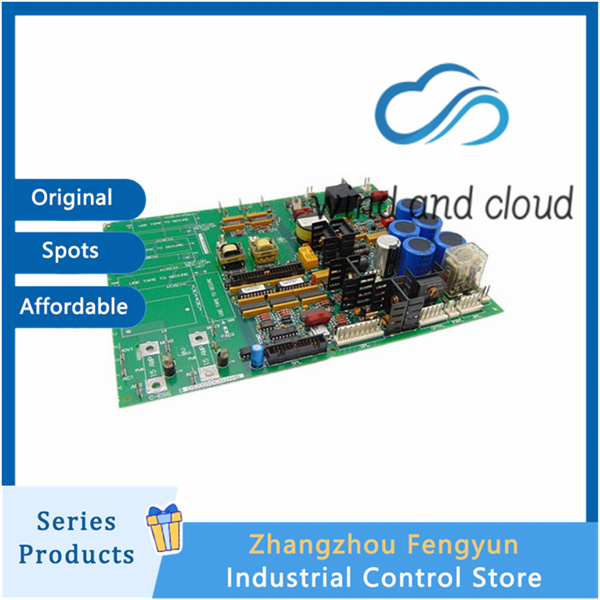

DS200SDCIG2AHB
