ABB CP430T-ETH｜ Control Panel｜

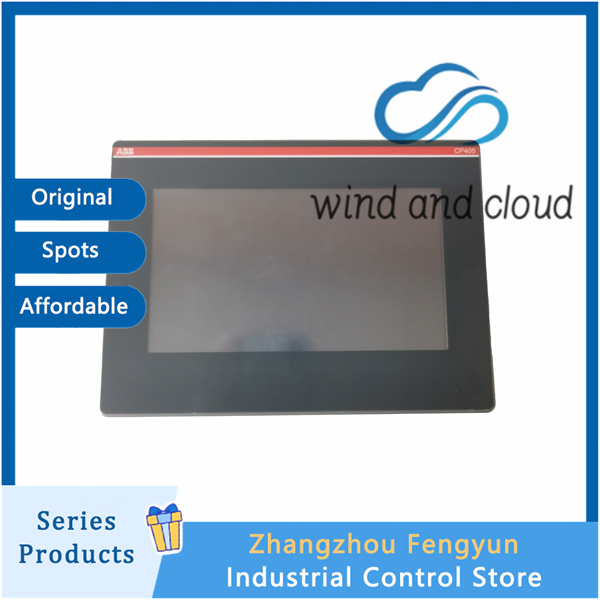

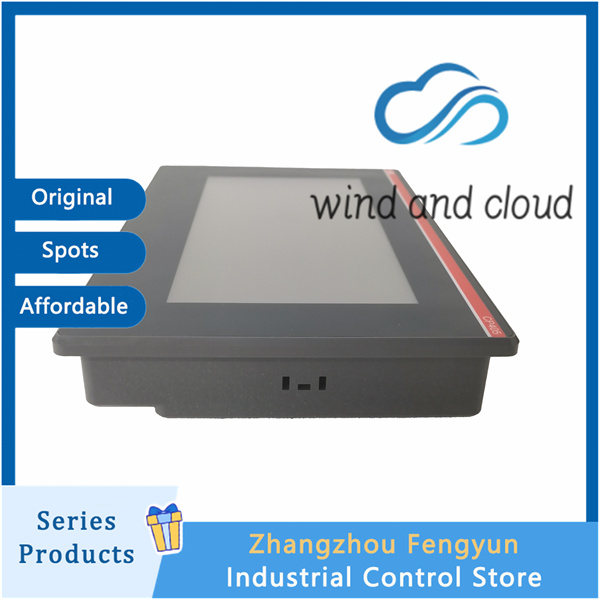

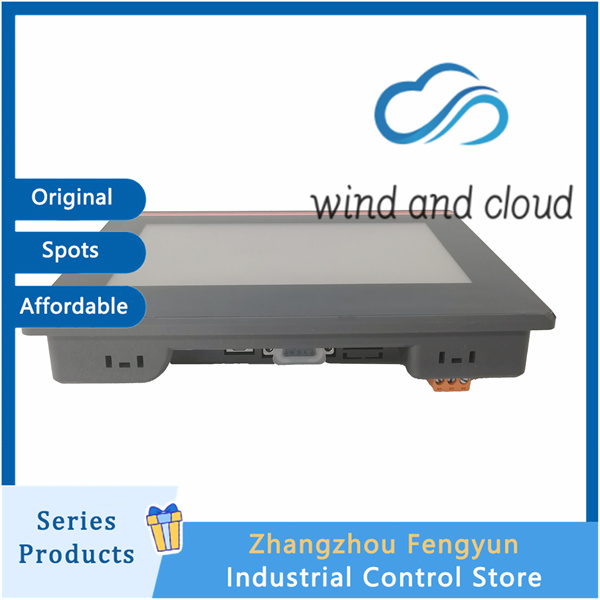

CP405 A0 1SAP500405R0001

Storage and hardware performance
Main controller: 32-bit RISC processor
Program flash memory: 4MB Flash
Operating memory: 16MB RAM
Battery backup memory: 512KB (for storing recipes, power failure alarms, RTC clocks)
Built in rechargeable lithium battery RTC real-time clock, power outage maintenance time for several months

Electrical, Dimensional and Protection
Power supply: DC 19.2~28.8V
Installation method: Cabinet embedded installation
Overall appearance: width 195mm x height 145mm x depth 59.1mm
Cabinet opening size: 185.8mm × 135.8mm
Weight: Approximately 0.86kg
Protection level: front panel IP65/NEMA4X, back interface IP20

Ambient temperature
Work: 0 ℃~+50 ℃
Storage: -20 ℃~+70 ℃
Humidity: 5%~90% RH, no condensation

Core functionality
Process flowchart, dynamic bar chart, real-time trend curve display
Multi level fault alarm, event recording, exporting historical alarms from USB drive
Storage, import and export of multiple process formulas
Multi level user password permission management, distinguishing between operation/administrator permissions
External USB printer for printing reports and fault records
Macro instructions, logical operations, numerical conversion, timed actions
