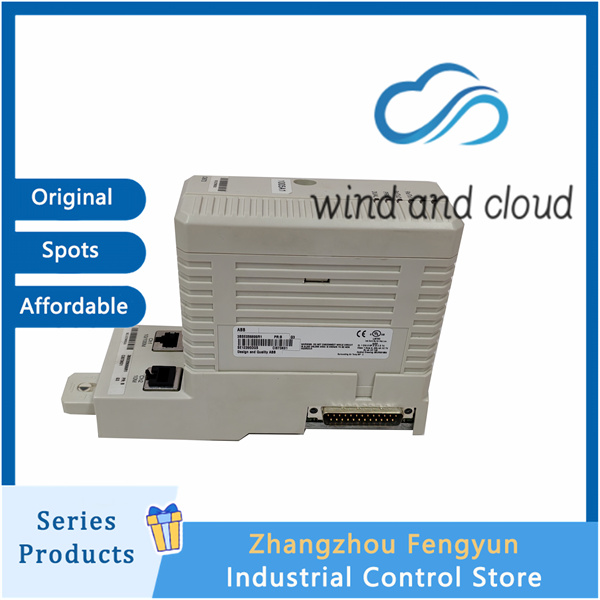

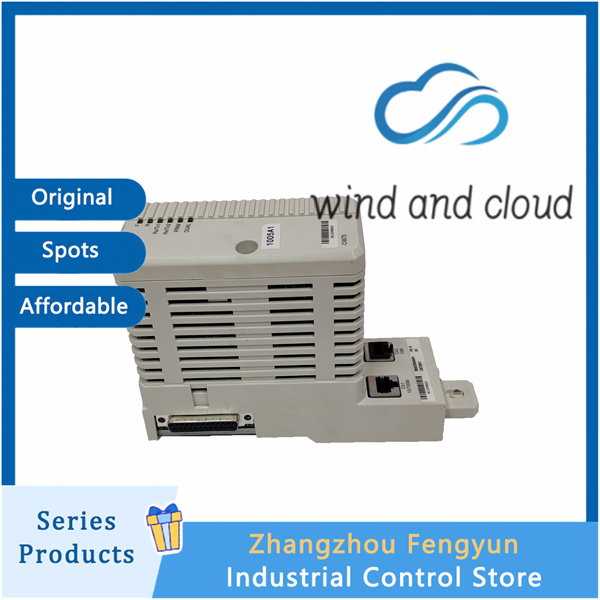

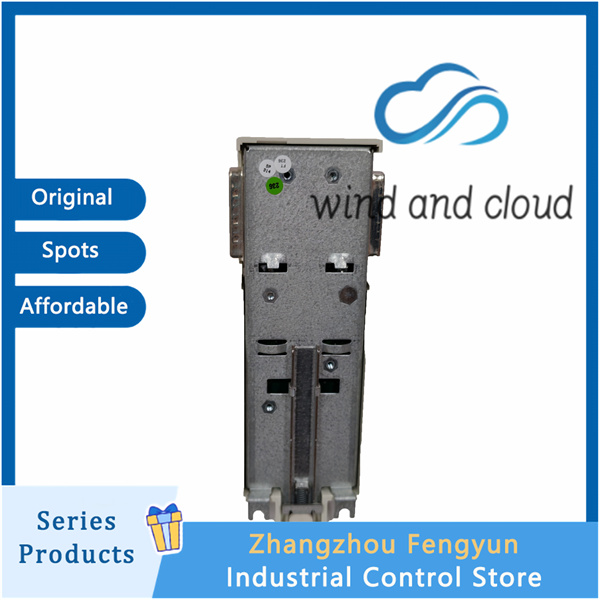

ABB CI873K01 3BSE058899R1｜Ethernet/IP Interface｜

CI873K01 3BSE058899R1

Characteristic
Protocol: EtherNet/IP, working mode is Scanner Master Station, compatible with DeviceNet device interoperability
Network port: Dual RJ45 (Ch1/Ch2), 10/100Mbps adaptive full duplex
Load capacity: A single module can mount up to 128 EtherNet/IP slaves
Topology: Supports star, tree, and ring industrial Ethernet architectures
Data interaction: Remote IO/device data is directly mapped to AC800M controller variables for real-time periodic interaction
Configuration software: Control Builder M programming configuration, online diagnosis, fault alarm

Specification
Power Supply: Backplane CEX bus 5V power supply, no need for external 24V; maximum power consumption ≤ 8W
Installation: AC800M controller rack hot swappable module, supporting online hot swapping
Redundancy scheme: supports module redundancy (dual CI873K01+dual base), and ensures uninterrupted switching in case of link failure; Single card dual network port link redundancy is not supported
Size and Weight
Width 59mm, height 185mm, depth 127.5mm
The total weight including the base is about 700g

Environmental level
Working temperature: -20 ℃~+60 ℃
Storage: -40 ℃~+85 ℃
Humidity 5%~95%, no condensation, IP20 (for use inside control cabinet)
Electromagnetic compatibility: IEC 61000-4 industrial anti-interference standard
