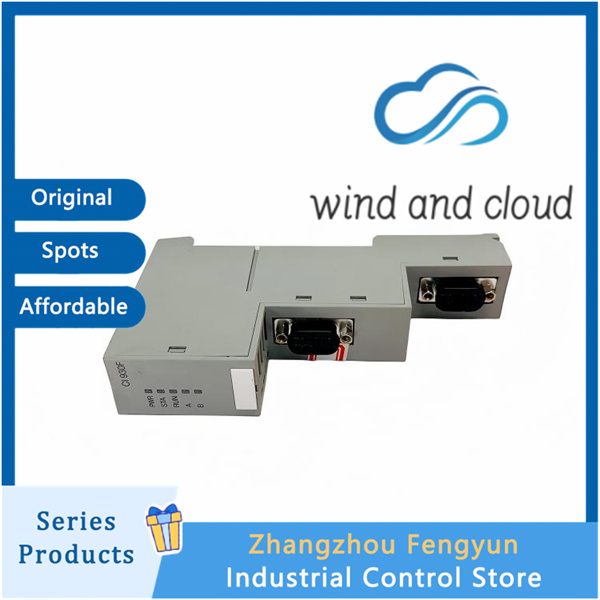

ABB CI930F 3BDH001010R0005｜PROFIBUS DP Master Module｜

CI930F 3BDH001010R0005

Specification
bus protocol
PROFIBUS DP Master V0/V1， Support Class1 cycle control, Class2 non cycle read/write, and device diagnosis
Dual independent DP channels
The module comes with 2 DB9 female DP interfaces and supports bus line redundancy (dual channel independent bus)
Baud rate: 9.6 kbps~12 Mbps adaptive (RS485 electrical standard EN50170)
load capacity
The maximum number of DP slaves per channel is 126, and a total of 252 on-site devices can be mounted on two channels
Message length: Maximum 244 bytes IO message, meeting the big data interaction requirements of frequency converters, remote IO, and valve positioners
Configuration tool: Freelance Engineering, import GSD files to configure third-party slave stations

Highlight
Dual DP bus redundancy
Two completely independent DP channels, capable of dual bus redundant architecture, single bus failure does not affect the entire control system
Fully compatible with third-party DP devices
Adapt to Siemens ET200 IO, various frequency converters, locators, analyzers, weighing instruments and other DP slave stations
Rich diagnostic functions
Real time reporting of bus short circuit, disconnection, loss of slave station, and communication timeout to the system alarm
Dedicated to Freelance
Only compatible with AC800F/AC900F Freelance system, not suitable for AC800M (800xA)
Differentiation: The AC800M PROFIBUS master card is CI930 (without F suffix), and its hardware, firmware, and rack are not compatible
