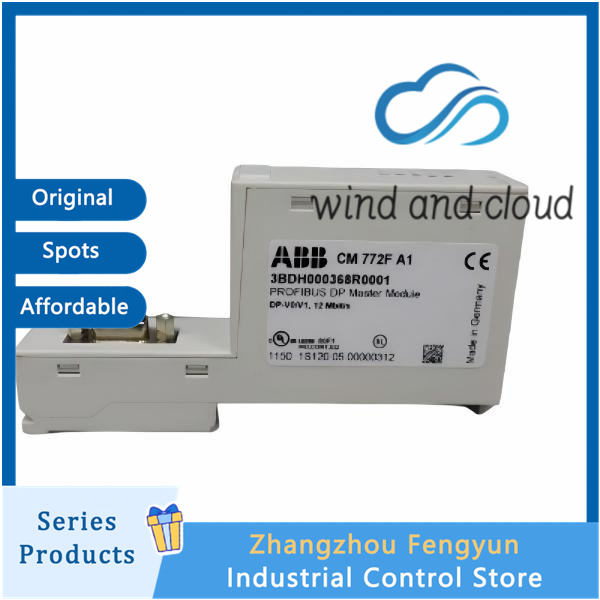

ABB CM772F 3BDH000368R0001｜Profibus DP Master Module｜

CM772F 3BDH000368R0001

Specification
protocol standard
PROFIBUS DP Master V0 (Periodic IO)+V1 (Non Periodic Read/Write, Device Parameters, Diagnosis)
Interface: Standard 9-pin DB9 female DP bus interface
Baud rate: 9.6kbit/s~12Mbit/s adaptive
IO data capacity: maximum 8KB input+output process data
Load capacity: Up to 126 DP slaves per bus (limited by total IO bytes)
Configuration software: Freelance Engineering, import GSD files to configure third-party DP devices

Function
Real time control of DP master station
Connect Siemens ET200 remote IO, frequency converter, valve positioner, analyzer, weighing instrument and other DP slave stations
Complete equipment diagnosis
Real time uploading of DCS alarms for bus disconnection, short circuit, offline slave station, and communication timeout
Non periodic read/write V1 function
Online modification of on-site equipment parameters and reading of equipment fault logs without the need for downtime
Single bus architecture
Single channel DP, if bus redundancy is required, two independent DP buses need to be mounted on each CM772F separately
