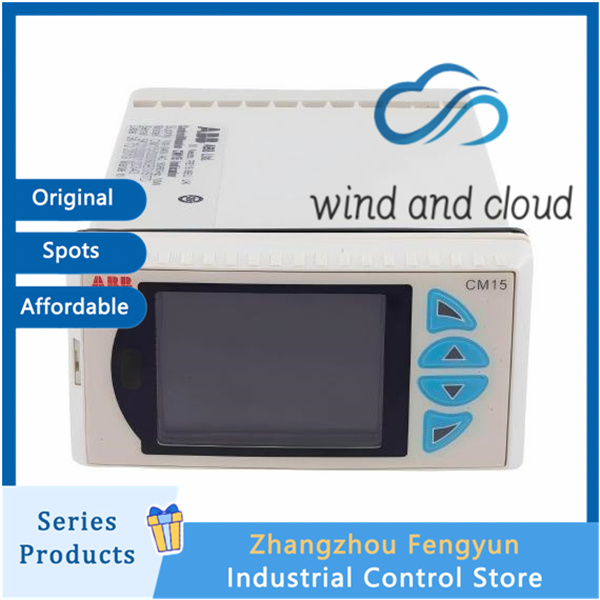

ABB CM15/000S0E0/STD｜Universal Process Indicator｜

CM15

Specification
Power supply: DC 10-36V, overall power consumption ≤ 5W
Input
AI1 universal input: thermocouple K/J/T/R/S/B/E/N, Pt100, mV, 0-10V, 4-20mA, frequency pulse
AI2 standard simulation: 0/4-20mA, 0-10V
DI: 2-channel passive dry contact
Output
AO: 1-way isolation 4-20mA, maximum load 500 Ω
Relay: 1-channel SPDT relay (5A/250VAC), position/time proportional adjustment
Display: 2.2-inch color TFT LCD screen, text-based alarm, trend, and process curve
Communication: Ethernet Modbus TCP, can be directly connected to PLC, DCS, SCADA upper level data acquisition
Protection: Panel IP66/NEMA4X, back terminal IP20; Cabinet opening 1/8 DIN standard
Environment: Working temperature -20 ℃~+60 ℃, no condensation

Function
Single loop PID, supporting automatic Auto tune self-tuning, cascade, segmented heating and cooling output
8 sets of prefabricated process templates (oven, heat treatment, water treatment, refrigeration, etc.)
Multi stage program temperature/insulation/cooling timing control with interlock waiting
Built in mathematical operations, logical comparisons, 8 sets of high and low limit alarms, and fault diagnosis
Local/Remote Setpoint Switching, Output Limiting, Fault Safe Mode

Scene
Heat treatment furnaces, ovens, injection molding equipment, small-scale chemical/water treatment single loop temperature/pressure/flow regulation, equipped with ABB AC800F Freelance and AC800M 800xA DCS as on-site independent regulating instruments.
