MOTOROLA MVME55006E-0163-B｜Embedded Controller｜

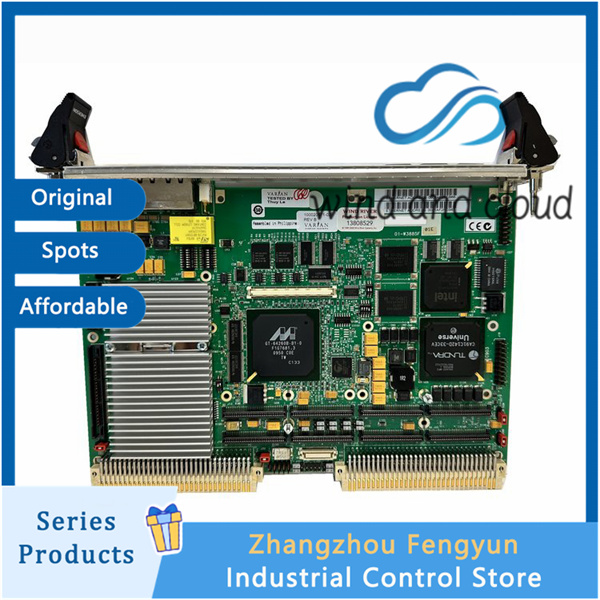

MVME55006E-0163-B

1. Processor
CPU：Freescale MPC7457 PowerPC G4
Main frequency: 1.0 GHz (MVME6100 is 1.267 GHz)
Cache: L1 32/32KB, L2 256KB, L3 2MB
Coprocessor: 128 bit AltiVec vector computing unit
Bus controller: Tsi148 VME bridge chip
2. Memory&Storage (factory soldered and unchangeable)
System memory: 512MB DDR133 ECC SDRAM (standard for 0163); 0173 is 1GB)
Flash: 40MB NOR Flash (32MB+8MB redundant Boot)
NVRAM: 128KB battery backup SRAM+RTC real-time clock
3. VME bus
Support: VME64, 2eVME, 2eSST 320MB/s (same as MVME6100 bandwidth)
Bit width: 64bit A32/D64
Master/Slave mode DMA、 Multi level interrupt, bus arbitration
4. Expansion slot
2 x PMC-X 64bit/66MHz PCI-X mezzanine slot (IEEE P1386.1)
5. Front panel interface (standard)
Dual Ethernet ports: 1 x Gigabit Ethernet+1 x 10/100Mbps Ethernet RJ45
2-channel RS232 asynchronous serial port DB9
IEEE1394b Firewire Interface
Reset, Abort debugging button, status LED, hardware watchdog
Rear panel P2 output: SCSI, serial port, PMC signal (perfectly matched with MVME761-001)
6. Electrical, environmental, and mechanical (B-version reinforcement characteristics)
Board type: 6U VME single width front plug-in main control
Handle: Scanbe industrial handle (0163; 0163R is IEEE handle)
Power supply: VME backplane+3.3V/+5V/± 12V
Typical power consumption: 22W (lower than 25W of MVME6100)
Working temperature: 6E Wide temperature range: -40 ℃~+85 ℃
Special: B-version original factory three proof coating, moisture-proof, corrosion-resistant, and resistant to vibration and impact (military grade)
Size: 233.4 × 160mm, weight ≈ 2.5kg
