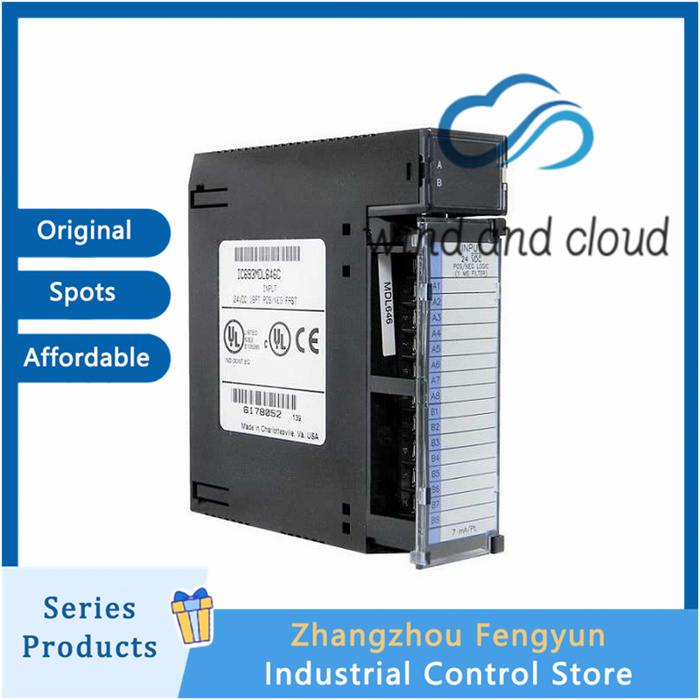

GE IC693MDL646｜Positive/Negative Logic Input Module｜

GE Fanuc/Emerson IC693MDL646 is a high-frequency/high-speed 16 point 24VDC digital input module in the Series 90-30 PLC series.

Its core functions and technical features are as follows:

Core functions and features

High speed signal acquisition and filtering (core feature)

The filtering response time is only 1 ms (standard DC input modules typically have around 20 ms).

Specially designed to receive high-frequency switch signals, fast travel switches, photoelectric sensors, or fast pulses, it can capture extremely short motion signals in a timely manner, avoiding missed sampling under high-speed conditions.

Flexible polarity compatibility (universal for positive/negative logic)

Supports two types of wiring logic: sourcing and sinking:

Positive Logic/Sinking Input: The input terminal is connected to+24V, and the common terminal (COM) is connected to 0V (GND).

Negative Logic/Sourcing Input: The input terminal is grounded, and the common terminal (COM) is connected to+24V.

High density channels and group isolation

Provide 16 independent digital input channels, divided into two groups (A1-A8, B1-B8), sharing a common terminal (COM).

There is photoelectric isolation between the module and the PLC backplane bus to prevent on-site strong electrical interference or surge damage to the main CPU core.

Visualization and Diagnosis of Channel Status

The module panel is equipped with 16 green LED status indicator lights (A1-A8, B1-B8), which can display the on/off status of each input channel in real time, facilitating on-site debugging and troubleshooting of circuit faults.

Overview of Technical Parameters
Technical specifications for parameter items
Rated input voltage 24 VDC (operating voltage range: 0 to 30 VDC)
Number of channels 16 points (1 common end group)
Input filtering delay of 1 ms (typical value, same ON/OFF)
Input current 7 mA/channel (at 24 VDC)
ON state judgment voltage 11.5 to 30 VDC
OFF state judgment voltage 0 to 5 VDC
Backplane current consumption 80 mA (@ 5VDC backplane power supply), 125 mA (@ 24VDC)
Typical application scenarios

High speed position detection: in conjunction with high-speed proximity switches and photoelectric sensors to monitor the rapid positioning signal of robotic arms or conveyor lines.

High speed counting and measurement: receive low-frequency to mid frequency pulse signals or switch pulses from flow meters.

High frequency response control: applied in industrial scenarios such as packaging machines, flying shear control systems, high-speed stamping, and automated assembly lines that require strict response time delays.
