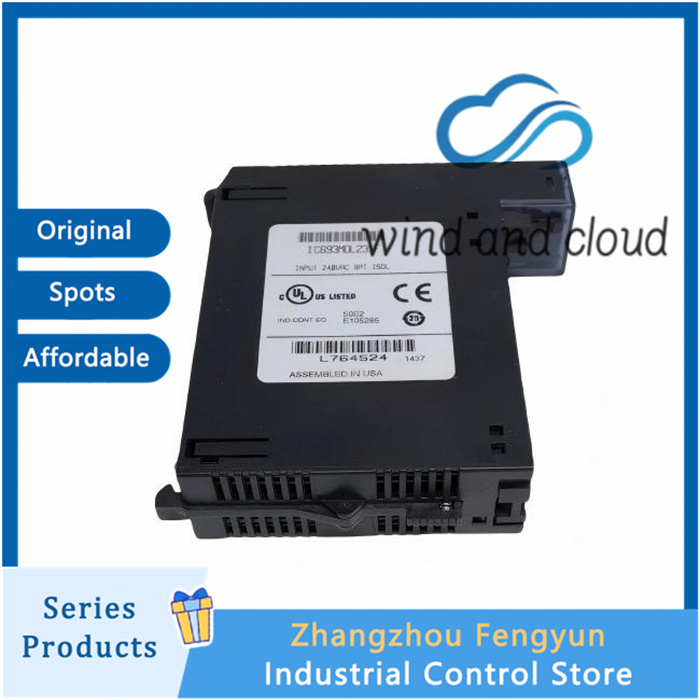

IC693MDL231
Brand: GE Fanuc/Emerson
PLC series: Series 90-30
Module type: 240V AC isolated digital input module
Overview
8 isolated AC inputs, each channel has an independent common terminal
Input circuit: RC type AC input
There is current flowing into the channel, and the corresponding bit of PLC input register% I is logic 1
Applicable equipment: buttons, limit switches, electronic proximity sensors
Important: Only AC communication is supported, and DC direct current is strictly prohibited; The on-site power supply is provided by external users
hardware feature
Status LED: A row of 8 green LEDs above the module, A1~A8 correspond to channels 1-8, displaying channel on/off status
Flip label insert: printed wiring information on the inside; The outer side can be handwritten to mark the circuit; Red mark on the left edge, high voltage warning
Installation: Can be installed in any I/O slot of the 90-30 slot base plate, occupying 1 slot
Complete electrical specifications
Parameter values
Rated voltage 240V AC, 50/60Hz
Input voltage range 0-264V AC, 50/60Hz
There are 8 channels, each with an independent common end
Isolation voltage withstand field side – logic side: 1500V RMS
Between channels: 500V RMS
Typical input current 15mA@240VAC Rated voltage
On state voltage 148-264 V AC
Off state voltage 0-40 V AC
Minimum conduction current 6 mA
Maximum shutdown leakage current 2.2 mA
The maximum response time for connection is 30 ms
The maximum response time for disconnection is 45 ms
Backplane 5V power consumption, all channels conducting: 60mA
