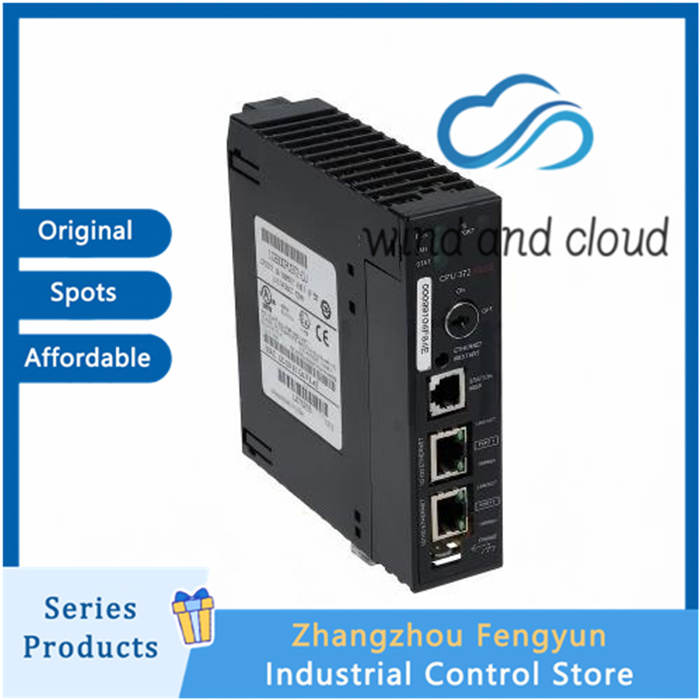

GE Fanuc IC693CPU374

IC693CPU374 is a GE Fanuc Series 90-30 high-performance CPU module with built-in Ethernet. It is a single-slot CPU used as the central controller for Series 90-30 PLC systems.

core functionality
PLC central control: executes user programs, logical operations, sequential control, and on-site I/O control.
High speed program processing: using a 133 MHz processor, the typical Boolean logic execution time is about 0.15 ms/1K logic.
Built in Ethernet communication: Integrated with 10/100 Mbps Ethernet, no additional Ethernet communication module needs to be installed.
Industrial network data exchange: Supports GE Fanuc network communication functions such as SRTP and EGD, and can be used for data exchange between PLC, HMI, SCADA, and upper level systems.
User program storage: Provides 240 KB of user memory, using RAM and Flash storage.
I/O control capability: Supports up to 2048 discrete inputs (% I) and 2048 discrete outputs (% Q).
Analog data processing: The% AI and% AQ regions can be configured, with a maximum of 32640 words.
System Expansion Control: Can be combined with Series 90-30 expansion baseboards to build multi rack PLC control systems.
key parameters
Parameter specifications
Brand GE Fanuc
Series 90-30
Model IC693CPU374
Type: CPU/Ethernet Controller
Install slot 1
Processor speed 133 MHz
User memory 240 KB
Ethernet built-in 10/100 Mbps
Discrete input maximum 2048 points
Discrete output maximum 2048 points
Communication protocols SRTP, EGD
Storage method: RAM+Flash
Typical logic execution time is about 0.15 ms/1K logic
Working temperature 0-60 ° C
