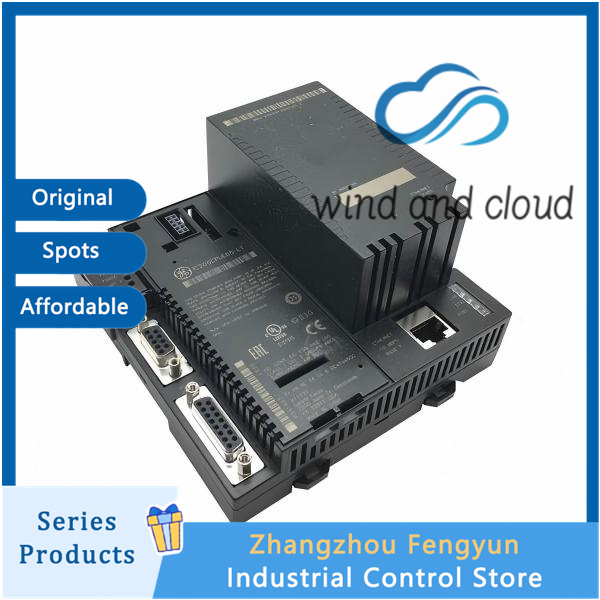

GE IC200CPUE05｜PLC Module｜
core parameters
Model: IC200CPUE05
Series: VersaMax (GE Fanuc/Emerson)
Processor: 32-bit
User memory: 128KB (program/configuration/data)
Maximum I/O: 2048 points, up to 64 expansion modules
Boolean operation speed: 0.8 ms/K (typical)
Communication interface:
Ethernet: 10Mbps, RJ45, half/full duplex
RS-232 (Port1): SNP, RTU slave station
RS-485 (Port2): Serial I/O, Modbus RTU
Programming: ladder diagram LD, instruction table IL; software: VersaPro 2.0+, Machine Edition Logic Developer
Storage backup: Flash+battery RAM; Super capacitor for 1 hour, battery for up to 6 months
Dimensions (width x height x depth): 126 x 128 x 69.1 mm
Weight: Approximately 0.39 kg
Installation: DIN rail
Power supply: IC200PWRx02 power module is required; 5V/220mA、3.3V/570mA
Main Features
Compact multifunctional CPU: Integrated Ethernet+dual serial ports, flexible networking.
Large capacity memory: 128KB supports complex program and data storage.
Strong scalability: 2048 I/O points, covering small and medium-sized projects.
Industrial reliability: wide temperature range, anti-interference, suitable for factory automation.
application
Control of small and medium-sized mechanical equipment
Factory automation, process control
Building automation, HVAC system
Distributed I/O system that requires networking
IC200CPUE05
