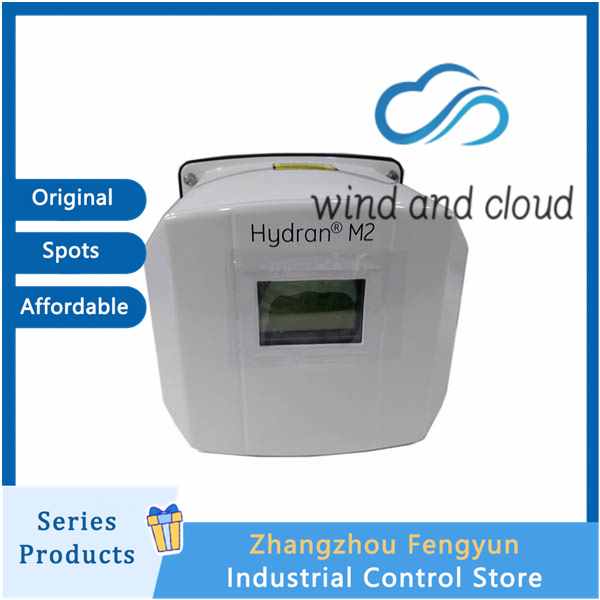

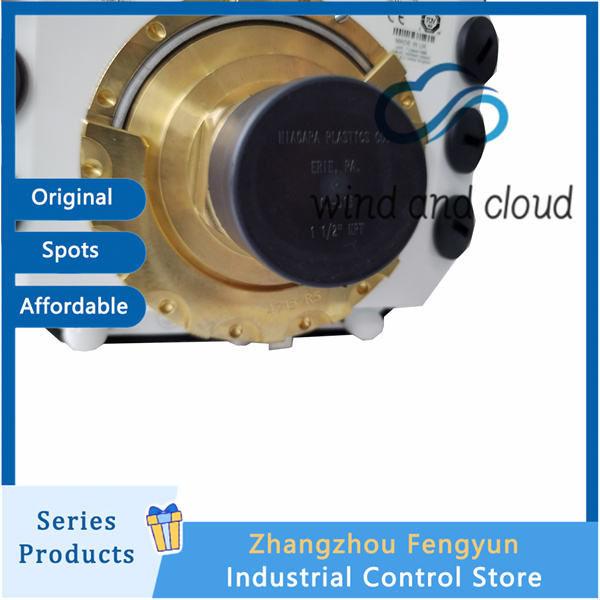

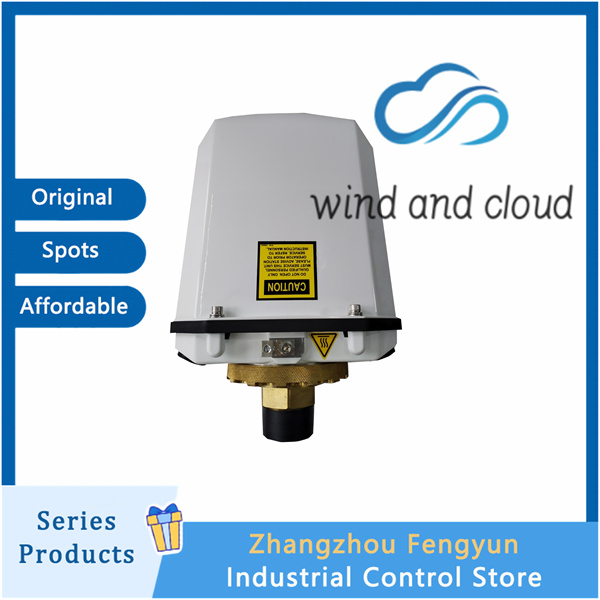

GE HYDRAN M2｜Online Transformer Monitoring｜
Main Functions
Continuous DGA and Moisture Monitoring
The Hydran M2 continuously monitors:
Dissolved fault gases in transformer oil
Moisture content in oil
This allows early identification of:
Thermal faults
Electrical discharges
Insulation degradation
Moisture-related aging problems
Additional Sensor Integration
The system can connect to external sensors such as:
Top oil temperature
Bottom oil temperature
Transformer load
Ambient temperature
These measurements can be correlated with gas and moisture data for deeper transformer health analysis.
IEEE-Based Transformer Models
The monitor includes onboard mathematical calculations based on IEEE transformer standards, enabling:
Thermal modeling
Aging estimation
Condition assessment
Trending analysis
This transforms raw monitoring data into actionable maintenance information.
Mark III Improvements
The latest Mark III version introduces several hardware and communication upgrades:
Enhanced Hardware
New electronic boards
Improved power supply
RoHS compliance
Better long-term component availability
Improved Sensor Technology
Higher measurement stability
Better sensitivity
Improved reliability
Flexible Power Supply
Worldwide AC/DC power compatibility
Expandable I/O Capability
Supports up to four optional input/output cards
Fiber Optic Communication
Optional internal multimode fiber optic communication interfac
