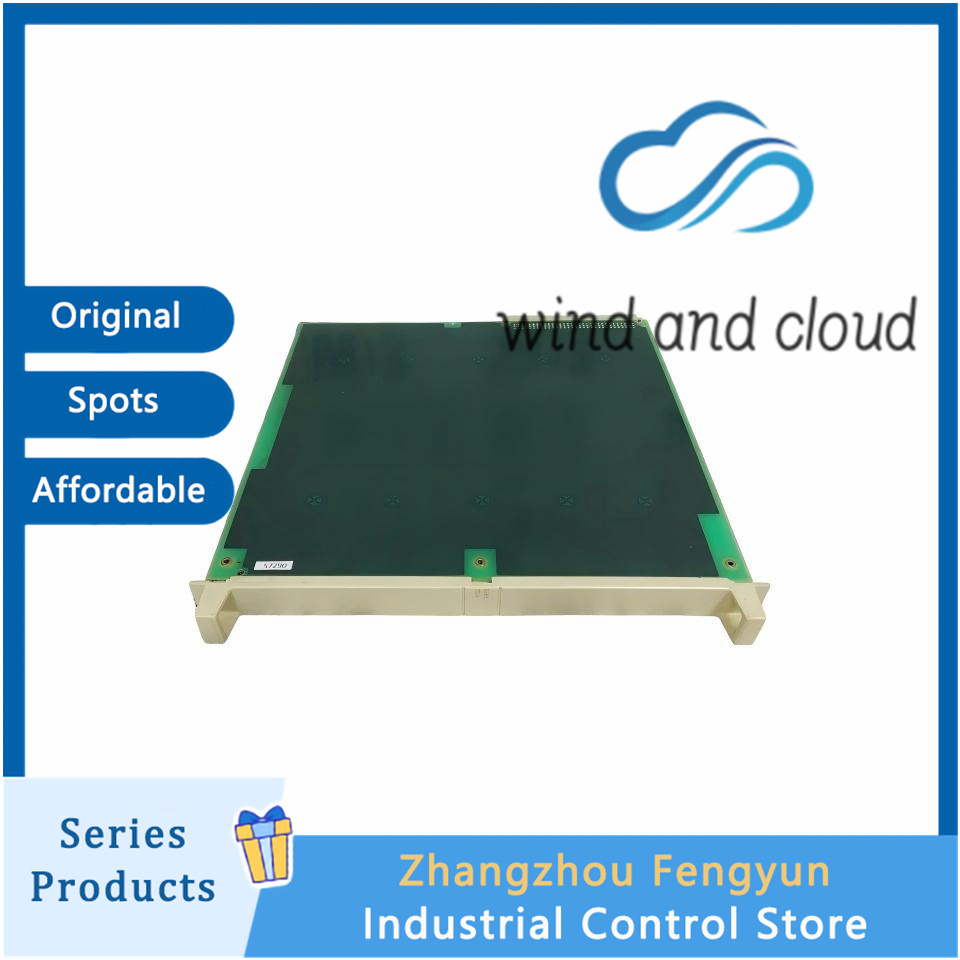

ABB DSBB110A 57330001-Y｜Master Shield Module｜
DSBB110A 57330001-Y
Electromagnetic filter shielding for the entire machine rack
Integrate multi-layer shielding circuits, filtering capacitors, and grounding circuits to suppress EMI/RFI RF interference generated by frequency converters, motors, and high-voltage equipment, avoiding bus signal distortion and control misoperation.
1500VAC bus isolation protection
Electrical isolation between the bus side and the on-site power supply eliminates ground loops and surge impacts, protects the main control and I/O sensitive chips, and reduces module damage caused by lightning strikes and strong electrical interference.
Unified convergence of the system on the ground
Unified rack shielding grounding nodes, standardized grounding paths for the entire DCS cabinet, in compliance with industrial process control EMC standards.
Function
Real time self check of bus status
Power on self diagnosis+continuous operation inspection, monitoring bus short circuit, disconnection, overload faults, actively uploading fault codes to the controller for easy operation and maintenance troubleshooting.
Overcurrent/Overvoltage Hardware Protection
The backplane power output has built-in fuses and current limiting circuits, and a short circuit on a single I/O card will not cause the entire machine to shut down.
Multi type I/O compatible adaptation
Compatible with Advant’s full range of analog AI/AO, digital DI/DO, special process cards, unified bus protocol, and can be mixed and inserted without the need for additional adapter boards.
