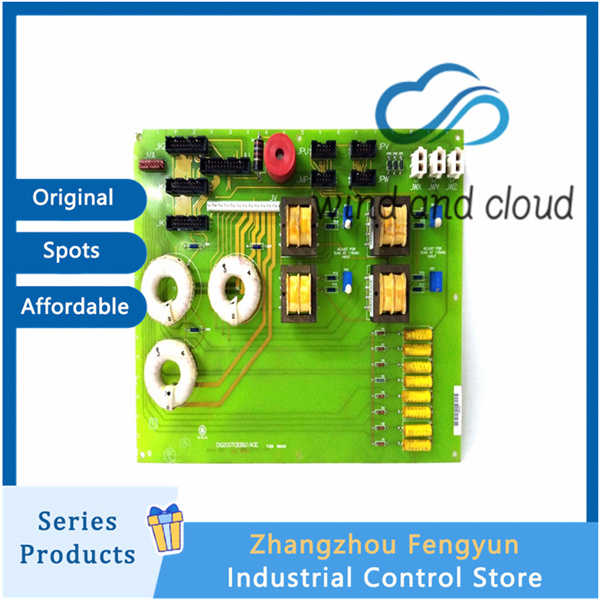

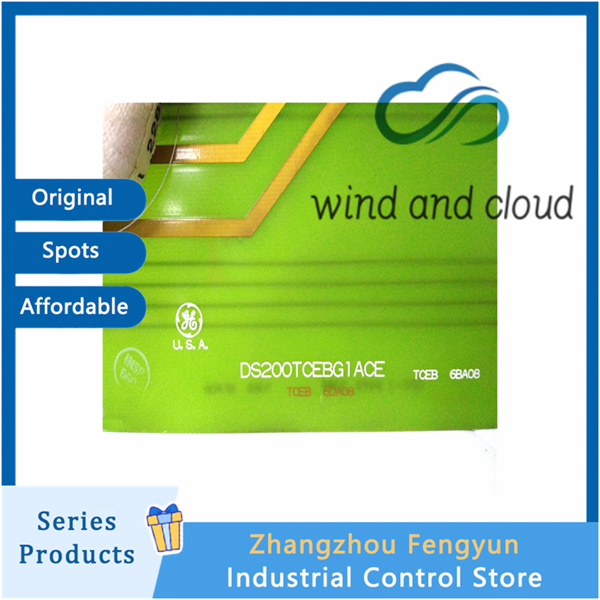

GE DS200TCEBG1ACE｜Controller Module｜
Parameter
Backboard power supply:+5V DC, ± 15V DC (system bus power supply)
Power consumption: typical 6W, maximum ≤ 10W
Processor: Dedicated LAN Control Processor (LCP) to reduce the load on the main CPU
Memory: onboard RAM and flash memory, used for protocol processing and firmware storage
Communication and Interface
Network protocol:
DLAN: GE proprietary high-speed industrial LAN (Drive LAN)
ARCNET: Industrial Real time Network for Controller and I/O Communication
Connector:
DLAN: Dedicated Shielding Interface
ARCNET: Standard Industrial Connectors
40 pin backplane connector (system bus)
Data rate: DLAN up to 10Mbps, ARCNET 2.5Mbps
Physics and Environment
Size: 215 × 125 × 60 mm (standard DS200 board)
Net weight: approximately 0.85 kg
Working temperature: -40 ℃~+70 ℃ (without condensation)
Storage temperature: -40 ℃~+85 ℃
Humidity: 5% -95% RH (non condensing)
Coating: Three proof coating, suitable for harsh environments in power plants/industries
Functions and Applications
Core function: Manage high-speed and reliable data transmission within the Mark V system, including control parameters, commands, and diagnostic information
System adaptation: GE Mark V gas/steam turbine control, generator excitation system, power plant automation
Redundancy support: Compatible with TMR/dual redundancy systems, supports hot plugging (under redundant configuration)
Diagnostic maintenance: onboard self-test (BIST), network status LED, ToolboxST remote monitoring
DS200TCEBG1ACE
