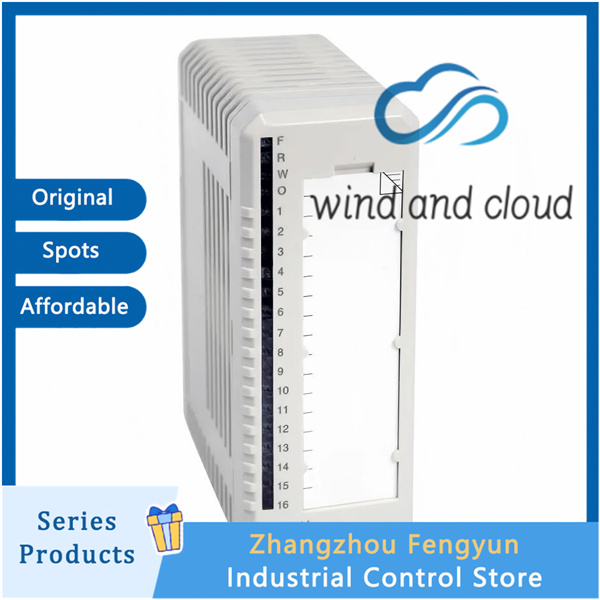

ABB DO814｜Digital Output Module｜
DO814
Channel specifications
16 point DC output, divided into 2 groups of isolation (8 channels per group), with photoelectric isolation between groups
Output electrical indicators
Output voltage: 24 VDC
Single channel maximum load: 0.5 A
Module total output current upper limit: 4 A
Output type: Sink current output
Response time:<1 ms
Built in single channel short circuit and overload protection
Communication and installation
Bus: Profibus DP, equipped with S800 base TU810/TU811, etc
Installation: DIN rail base type, supports hot swapping
Backboard power supply, module power consumption is about 2 W
environmental parameters
Working temperature: 0 ℃~+60 ℃; Storage -40 ℃~+85 ℃; IP20, CE/UL certification
