Product Overview

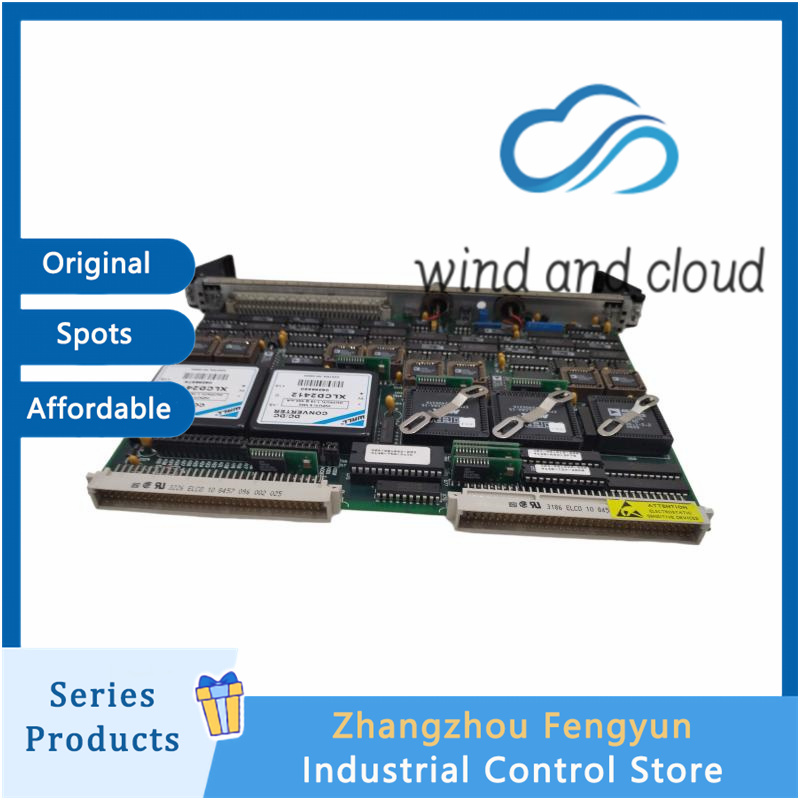

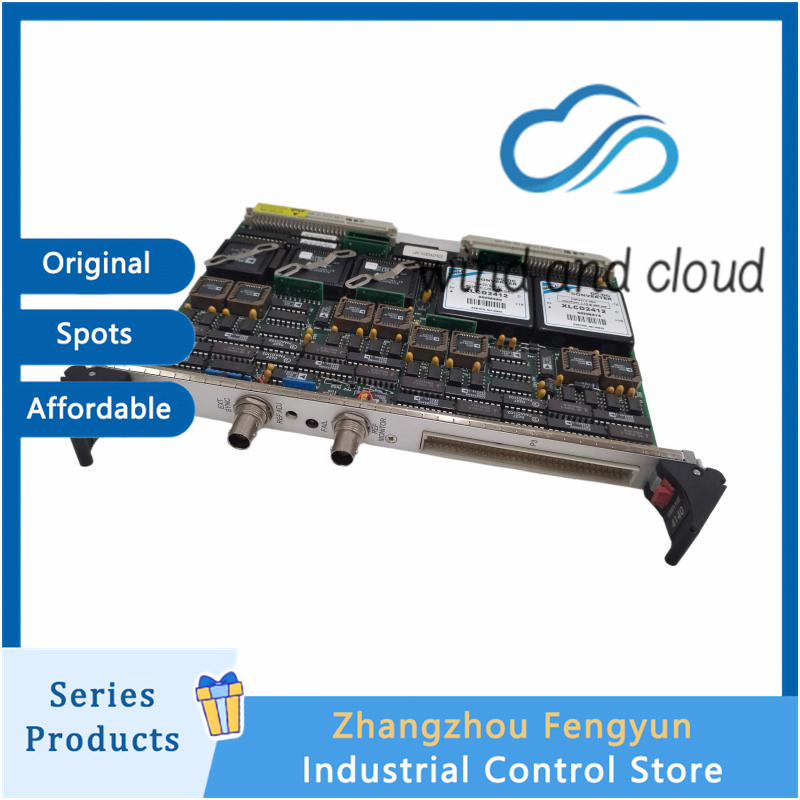

The VMIVME-4140 is a single-height VMEbus analog output board originally manufactured by VMIC (later GE Fanuc, Abaco Systems). It is a high-density, precision digital-to-analog converter board built for embedded VME systems, industrial control, automatic test equipment (ATE), power generation turbine control and legacy VME system replacement.
Each of its 32 channels uses an independent 12-bit DAC. The board supports random non-scan channel updates as well as synchronous double-buffered updates triggered by software or external hardware signal. It features on-board DSP-driven auto-calibration and built-in self-test diagnostics, with status LED on the front panel. A PMC expansion slot is available for extended functionality.
This board is widely sourced as spare replacement part for legacy critical control systems, especially gas and steam turbine control platforms.
Key Features
- 32 independent analog output channels, one dedicated 12-bit DAC per channel
- Software configurable voltage ranges: unipolar (0–2.5V, 0–5V, 0–10V) & bipolar (±2.5V, ±5V, ±10V)
- Per channel max drive current ±10mA, output impedance 0.8Ω
- Dual update modes: random non-scanning update OR synchronous double-buffered update (software / external trigger)
- DSP auto-calibration, triggered by reset or software command; stores gain/offset correction coefficients
- Built-in self-test & diagnostics; front panel status LED
- Front panel BNC connector for reference voltage access
- PMC expansion slot for optional add-on functions
- Supports discrete wiring or bulk-terminated cables
- Output field disconnection for offline maintenance and testing
- Single-height VME form factor, fits standard VME chassis backplane
Technical Specifications
- Model: VMIVME-4140
- Type: VMEbus Analog Output Board
- Manufacturer: VMIC / GE Fanuc / Abaco Systems
- Resolution: 12-bit per channel
- Channels: 32 analog output channels
- Output Ranges: Software-selectable unipolar and bipolar voltage ranges
- Max Output Current: ±10mA per channel
- Output Impedance: 0.8 Ω
- Update Modes: Random non-scan update; synchronous double-buffered update
- Calibration: Automatic DSP calibration, on-board self-test
- Bus Interface: VMEbus
- Form Factor: Single-height VME board
- Power: Powered via VME backplane +5V
- Front Panel: Status LED, BNC reference port, analog output connector
- Expansion: PMC slot available
Typical Applications
- Power generation: Steam & gas turbine control systems
- Automatic Test Equipment (ATE) / signal stimulus hardware
- Industrial process control and valve actuator control
- Aerospace embedded test and measurement systems
- Legacy VME control system upgrade & spare replacement
- Data acquisition and precision analog signal generation
Why Choose VMIVME-4140
The VMIVME-4140 is a proven high-density analog output solution for mission-critical VME systems. Independent DAC per channel eliminates crosstalk issues. Auto-calibration reduces long-term drift and minimises manual maintenance work. Synchronous update capability makes it ideal for closed-loop real-time control applications.
Many original VME systems have been in service for decades. The VMIVME-4140 remains a critical spare component for system repair, retrofit and life extension projects. We supply tested units, full functional testing before shipment, anti-static packaging and global shipping support.
