Overview

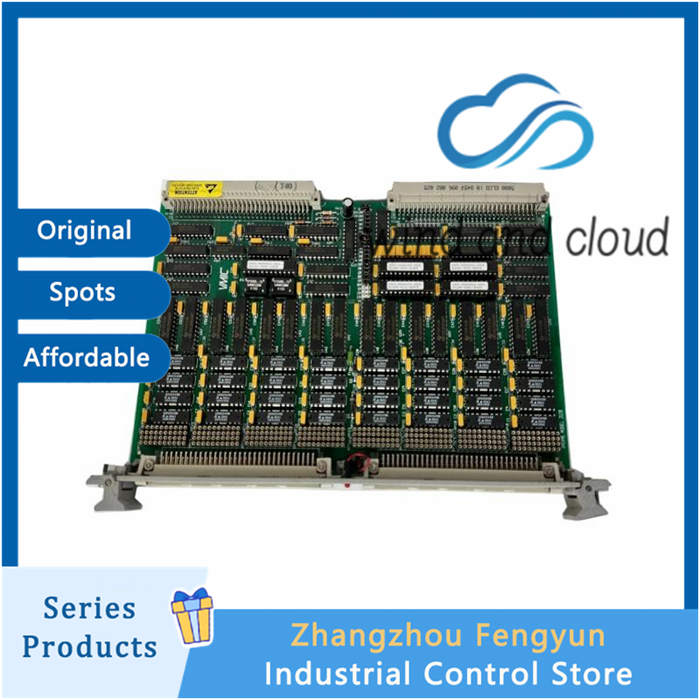

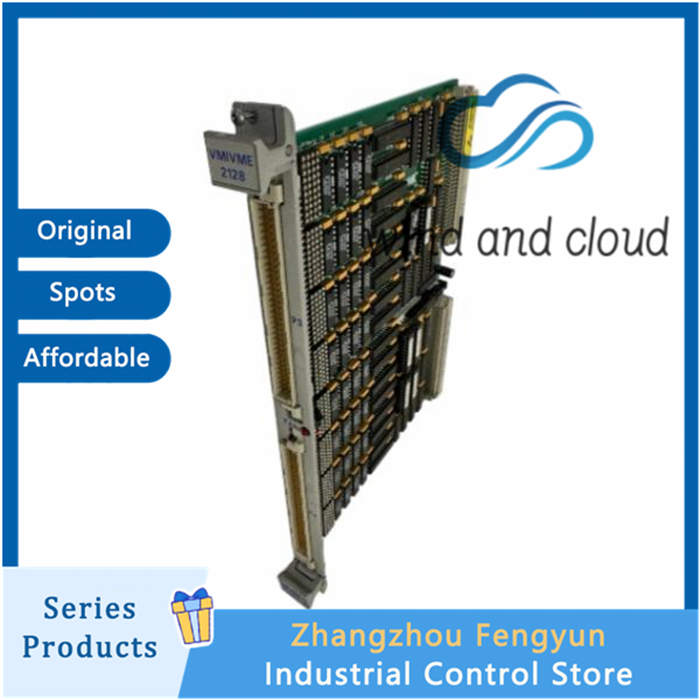

The VMIVME-2128 is a 6U double-height VMEbus high-density digital output board developed by VMIC, later acquired by GE Fanuc and Abaco Systems. It delivers 128 channels of high-current open-collector sink outputs to drive relays, solenoids, indicator lamps and other inductive/resistive field loads in legacy VMEbus control platforms.
A standout feature is its on-board BIT (Built-In Test) logic. Engineers can run software-triggered channel diagnostics to quickly locate faulty outputs, reducing downtime during system maintenance. Integrated protection circuits including surge current cut-off, thermal shutdown and flyback clamp diodes safeguard both the board and field devices from damage caused by inductive kickback and overload. Fully compliant with ANSI/IEEE STD 1014 VMEbus standard, this board is widely used as drop-in replacement spare for end-of-life VME racks in power, aerospace and semiconductor manufacturing equipment.
Key Features
- 128 high-voltage open-collector sink output channels
- Load voltage: 5 VDC up to 48 VDC, 55V breakdown rating
- Up to 600mA sink current per channel for high-load driving
- Built-In-Test (BIT) for software-controlled channel fault detection
- Front panel fault LED indicator for instant visual status check
- Automatic surge shutdown + thermal over-temperature protection
- Output clamp diodes to suppress inductive flyback voltage spikes
- VMEbus slave interface: A24:A16 addressing, D08 / D16 / D32 data transfer
- 6U double-height Eurocard form factor for standard VME chassis
- Optional pull-up resistors for electronic switch applications
- Compatible with VMIC intelligent I/O controllers and UIOD driver software
- Jumper-selectable base address to support multi-board stacking in one VME crate
Technical Specifications
| Parameter | Details |
|---|---|
| Model | VMIVME-2128 |
| Original Manufacturer | VMIC (GE Fanuc / Abaco Systems) |
| Product Type | VMEbus 128-bit High Voltage Digital Output Board |
| Output Type | Open collector sink outputs |
| Number of Channels | 128 |
| Load Voltage Range | 5–48 VDC, 55V breakdown voltage |
| Channel Sink Current | Max 600mA per channel |
| VME Standard | ANSI/IEEE STD 1014-1987 |
| Bus Mode | Slave, A24:A16 addressing, D08/D16/D32 |
| Protection | Surge shutdown, thermal shutdown, inductive flyback clamp diodes |
| Diagnostics | BIT Built-In Test, front panel fault LED |
| Form Factor | 6U Double Height VME Eurocard |
| Operating Temperature | 0°C ~ +55°C |
| Storage Temperature | -20°C ~ +85°C |
| Humidity | 20% – 80% RH, non-condensing |
| Power Supply | +5V DC from VME backplane |
| Condition | Discontinued original hardware; refurbished & fully tested units available |
Applications
The VMIVME-2128 serves as critical spare parts for maintenance and retrofit of legacy VMEbus automation systems:
- Solenoid valve, relay and indicator lamp control
- Power plant control systems and SCADA VME subsystems
- Semiconductor fab process equipment and wafer handling racks
- Aerospace and defence test & measurement platforms
- Automated industrial test benches
- Heavy machinery and process automation control cabinets
Why Choose VMIVME-2128
Original VMIVME-2128 boards have reached end-of-life and new units are no longer manufactured. Our refurbished VMIVME-2128 modules undergo complete hardware inspection, full channel functional verification and BIT diagnostic testing before shipment.
With 128 outputs on a single 6U VME slot, it delivers high I/O density and saves valuable rack space. The onboard BIT function drastically cuts troubleshooting time; technicians can validate each channel via software without external wiring work. Built-in protection circuits reduce risk of board burnout when driving inductive loads such as coils and relays.
It is a direct drop-in replacement for original VMIC hardware with no chassis or backplane modifications required. We supply datasheets, pinout diagrams and technical integration support. Every unit is packed in ESD anti-static packaging for safe international transit.
Order & Shipping
- Condition: Refurbished, fully tested VMIVME-2128
- Stock: Available, quick dispatch
- Shipping: DHL, FedEx, UPS worldwide delivery
- Warranty: Limited warranty for tested refurbished units
- Contact us for stock availability, quotation and technical support
