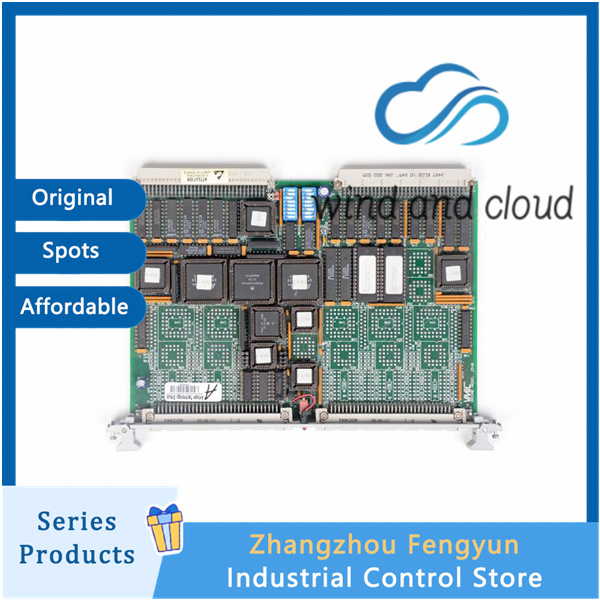

MOTOROLA VMIVME 2540-000｜Intelligent Counter/Controller｜

All products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second-hand and brand new products are available for sale on this website. Please contact customer service for further communication.

MOTOROLA VMIVME 2540-000｜Intelligent Counter/Controller｜

VMIVME 2540-000

1. Onboard local CPU
Local processor: Motorola 68HC000 @ 15MHz
Onboard RAM: 512KB; Onboard Flash: 64KB
VME interface: VMEbus Slave slave slave device (controlled by MVME master), 32-bit A24/D16/D32
2. I/O channels
Total channel: 24 multifunctional digital channels (input measurement+output multiplexing)
Interface level: RS-422 differential, TTL compatible, optocoupler isolation
Input and output can be configured with jumper wires; Equipped with a 120 Ω terminal resistor jumper
3. Measurement function (high precision)
Event Count: Up to 4G events, 32-bit counter
Frequency measurement: 1.16mHz~2.5MHz
Cycle/pulse width measurement: 400ns~8.5899s
Orthogonal encoder position measurement (ABZ orthogonal, up to 1MHz)
4. Pulse generation function
Square wave/pulse train output: 0.0076Hz~2.5MHz
Timer, cycle interrupt, frequency division output
5. Electrical&Environmental&Mechanical
Power supply: VME backplane+5V DC
Typical power consumption: 20W
Working temperature: -40 ℃~+85 ℃ Military wide temperature (000 wide temperature version)
Size: Standard 6U VME single slot
Front panel: 2 × 25 pin D-SUB I/O connectors, reset/Abort button
