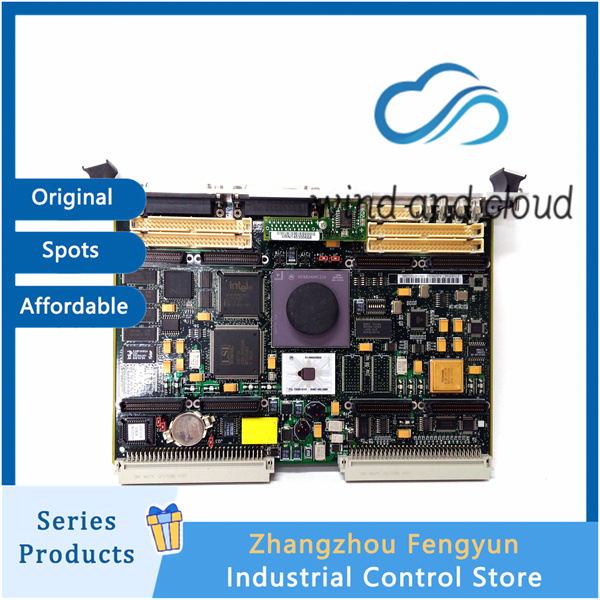

MOTOROLA VME172PA-652SE｜Embedded Controller｜

1. Processor
CPU：Motorola MC68060RC50
Main frequency: 50 MHz
Architecture: 68K family last generation high-performance CPU with hardware FPU floating-point unit
Bus Controller: VMEchip2 ASIC
2. Memory&Storage (factory fixed)
System DRAM: 32MB ECC memory
NVRAM battery backup SRAM: 512KB
Boot Flash: 1MB NOR boot flash
Onboard RTC real-time clock, hardware watchdog
3. VME bus
Standard VME32 32-bit A32/D32
Supports DMA, bus arbitration, and multi-level interrupts
Compatible with your previous VMIVME2540-000 counter card, direct slot mixing
4. Expansion slot (652SE maximum feature)
4 x Industry Pack (IP) single wide slot
Directly plug in IP modules: digital IO, analog, encoder, serial port, CAN, etc
5. Onboard interface (PA version)
Ethernet: 10Mbps Ethernet
SCSI-2 high-speed DMA interface
2-channel RS232 serial port
Reset and Abort debugging buttons
6. Environment&Electrical
Board type: 6U VME single height
Power supply: VME backplane+5V, ± 12V
Working temperature: SE Wide temperature: -40 ℃~+70 ℃
Military industry is resistant to vibration and impact, meeting the harsh industrial environment
