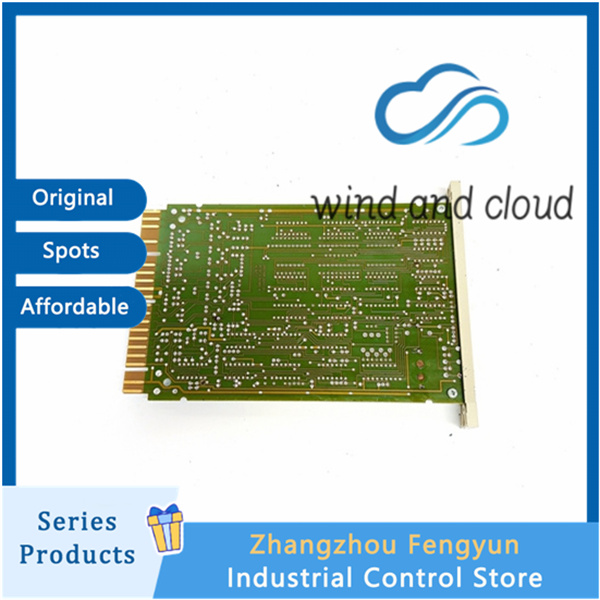

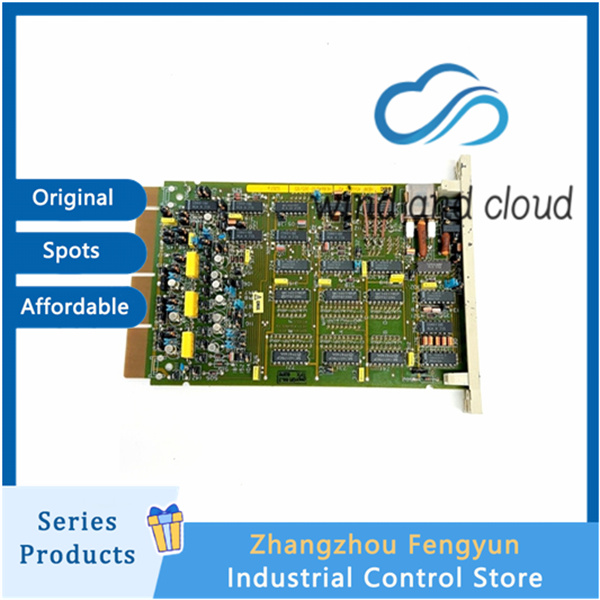

ABB G3EFA HENF450295R2｜Industrial Control Module｜



1. Multi channel mixed analog signal acquisition and isolation conditioning
Integrated multi-channel AC PT voltage, CT rotor current, 4-20mA sensor signal input; Each channel has independent 1500VAC high-voltage electrical isolation to isolate strong electromagnetic interference from power plant frequency converters and switch operations, avoiding sampling distortion and unit voltage regulation oscillations.
Support 0-10V, 4-20mA, AC small signal multi type input adaptation;
Built in precision operational amplifier, completes signal linear correction, impedance matching, and outputs standardized signals to the G3EB regulating board.

2. Excitation system hardware limiting and limiting operation (independent hardware circuit, not dependent on CPU)
Built in pure analog hardware limiting circuit, independently implementing unit safety protection logic:
Vhz/Hz limit, over/under excitation limit, rotor overcurrent, stator overvoltage hardware lockout;
When the signal exceeds the range or breaks, directly latch the adjustment reference to prevent the excitation output from losing control.

3. Fault diagnosis and hard contact alarm output
Real time self check for short circuits, disconnections, and overheating faults in each acquisition channel; The fault signal is transmitted to the E3ES main control through the backplane, and at the same time, passive relay contacts are output to the EHDB130 I/O board to drive on-site sound and light alarms and unit fault tripping circuits.
