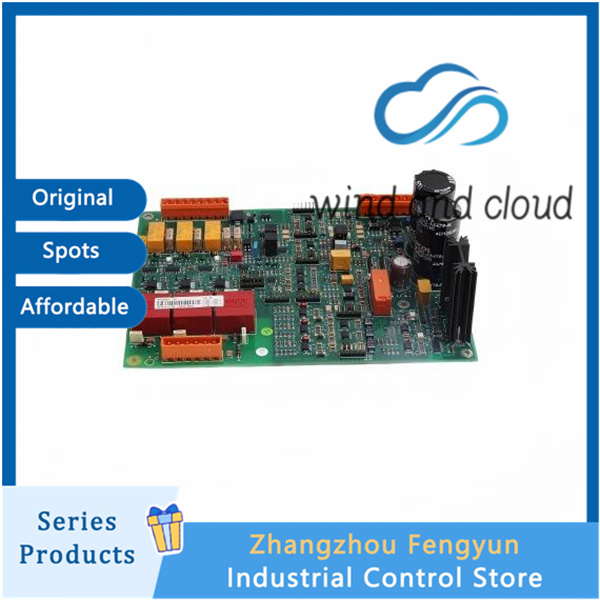

ABB DYTP600A 61430001-ZY｜Signal Processor Module｜

DYTP600A 61430001-ZY

Core functionality
Dual channel high-speed pulse acquisition
Supports 5V differential encoder, NPN/PNP 24V pulse, and passive pulse for flow meters; Maximum input frequency of 300kHz, 32-bit overflow free hardware counter, capable of measuring unit speed, flow accumulation, equipment positioning displacement, supporting orthogonal phase, single frequency, and latch counting modes.
Digital switch channel
8-way isolated digital input DI (24V active/dry contact compatible)+8-way isolated transistor output DO, collects valve limit and unit fault signals, outputs interlocking, alarm, and solenoid valve drive commands.
4-channel high-precision analog acquisition AI
16 bit analog-to-digital conversion, compatible with 4-20mA, 0-10V DC voltage, Pt100 thermistor, K/J/S/R thermocouple; Equipped with cold end compensation, hardware filtering, and temperature and pressure compensation calculation, reducing the main control load.
On board DSP independent computation
Local completion of flow compensation, speed PID preprocessing, over limit alarm, and total pulse accumulation to reduce system bus transmission pressure.
Full channel fault self diagnosis
Each channel has independent red and green LED status indicator lights, which can identify disconnection, short circuit, over range, and communication faults in real time; Support cabinet hot plugging, matched with Control Builder software for online configuration and range calibration.
Multi level hardware protection
Full channel anti reverse connection, overcurrent, overvoltage, and surge self-locking protection; The signal circuit is isolated from the backplane bus at 2500VAC to resist electromagnetic interference from power plant frequency converters and high-power motors.
