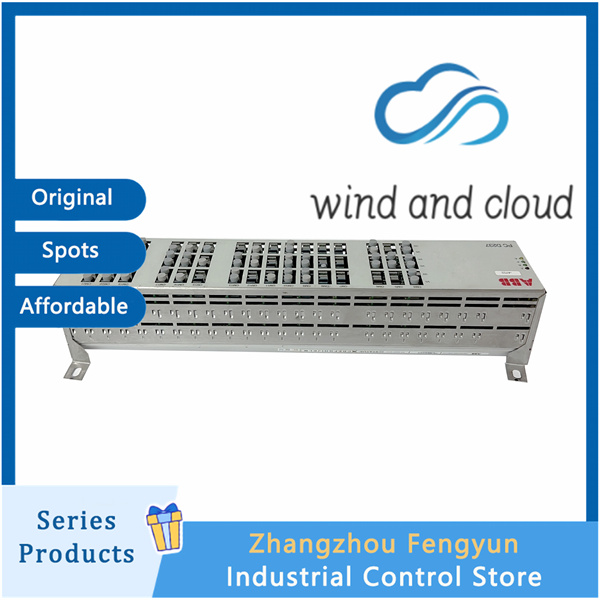

ABB PCD237A101 3BHE028915R0101｜ Exciter Control Module｜

1. Profibus DP master bus management (core communication function)
As a Profibus DP primary/secondary master, manage all slave devices under the bus, perform periodic high-speed data exchange, and read/write device parameters and fault diagnosis data asynchronously; Share the computational load of the main control CPU bus protocol to ensure that the excitation high-speed control circuit is not affected by network traffic interference.
Baud rate: 9.6k~12Mbps adaptive; A single bus can mount up to 124 slave stations;
Bus cycle: 12Mbps speed, 32 byte data cycle<1ms, meeting the requirements of fast excitation adjustment.
2. Excitation power unit fiber optic isolation high-speed communication
The multi-channel fiber optic port serves as a signal relay between the main control CPU and the rectifier power bridge. The fiber optic cable completely isolates strong and weak electricity, transmitting thyristor trigger pulses, power module temperature, current, and fault alarm signals, completely eliminating the problems of power plant ground loops and strong electromagnetic interference.
