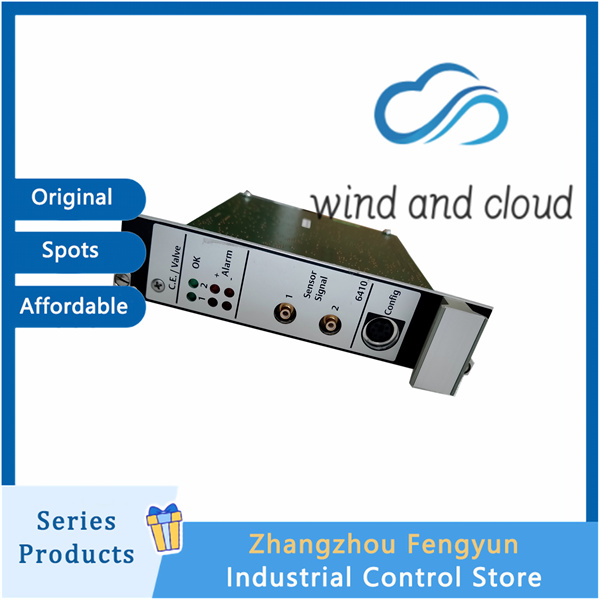

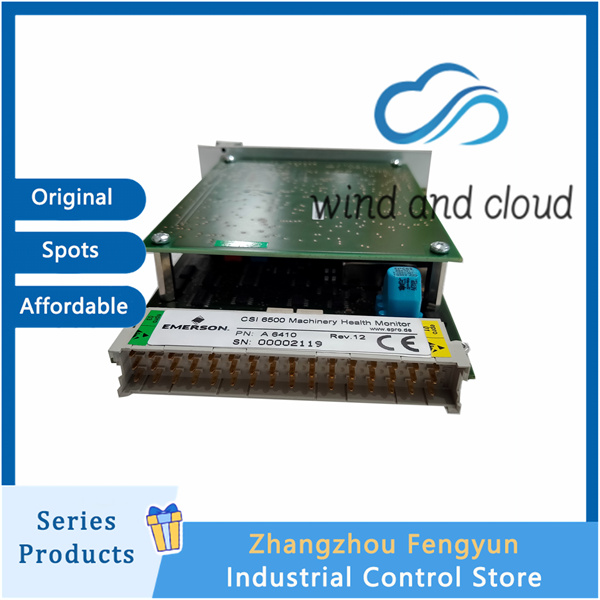

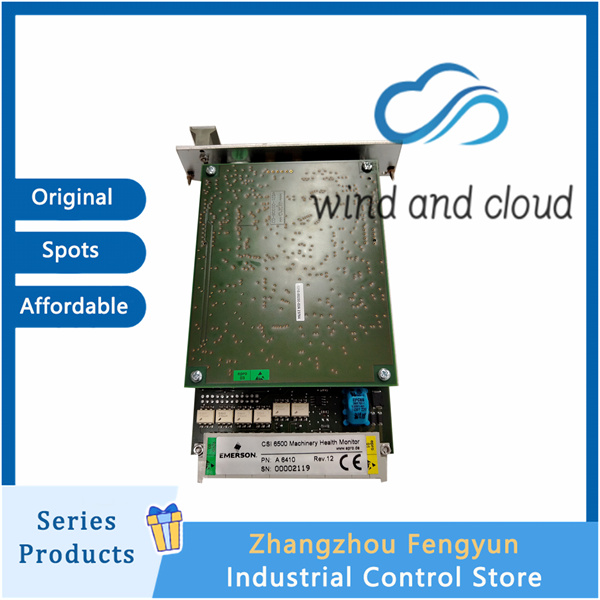

EMERSON A6410 9199-00005｜ Industrial Control Module｜

All products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second-hand and brand new products are available for sale on this website. Please contact customer service for further communication.

EMERSON A6410 9199-00005｜ Industrial Control Module｜

Power supply 24 VDC (19-32 VDC wide voltage redundant input)
Maximum power consumption of approximately 6 W (typical<3 W) Emerson
Input channel 2 independent differential inputs Emerson
Adaptive Sensor Inductive Displacement Sensor/LVDT (Recommended 9350 Series)
Continuous adjustable measurement range (typical ± 10 mm) Emerson
Frequency response 0-100 Hz (-3 dB) Emerson
Output signal 4-20 mA per channel (load<500 Ω), 0-10 VDC; Front and rear buffer output Emerson
Measurement accuracy at full range ± 0.2% FS (typical)
Resolution 0.1 μ m
Channel isolation power supply and input optoelectronic isolation 2500 VEmerson
Sensor power supply independent buffer power supply, 4 Vrms carrier, load 120-600 Ω Emerson

Dual channel independent monitoring: Channel 1 is used for cylinder expansion/dynamic displacement, channel 2 is used for static measurement/relative displacement, and supports thermal configuration switching.
API 670 Compliance: Meets the stringent requirements of steam turbine safety protection systems and supports remote bypass/interlock Emerson.
Full link self diagnosis: covering power supply, input module, temperature, sensor/cable faults, fault status can be uploaded to the Emerson bus.
Safety interlock: configurable alarm/danger threshold and delay (0-10 s), linked with A6500-RC relay card to achieve unit protection Emerson.

Communication: RS-232 configuration interface, supports Modbus TCP/IP data upload to Emerson.
Upper level docking: seamlessly integrated with AMS 6500 system, can be linked with DeltaV/Ovation DCS to monitor Emerson.
Typical matching: It needs to be used with 9350 series displacement sensors and A6500-RC interlocking cards.
