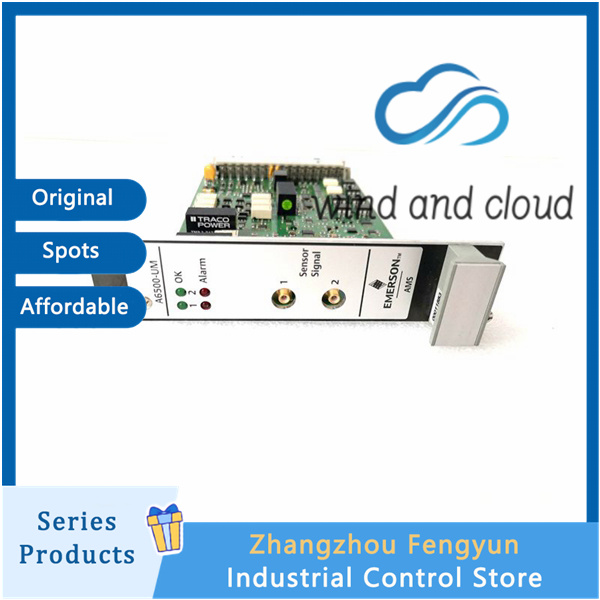

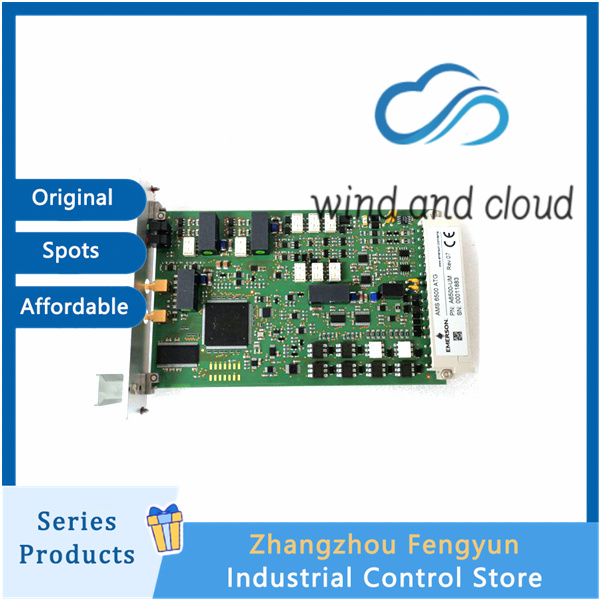

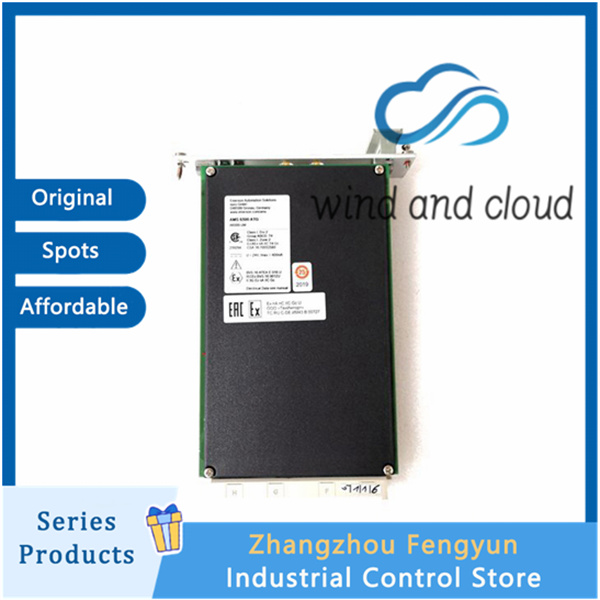

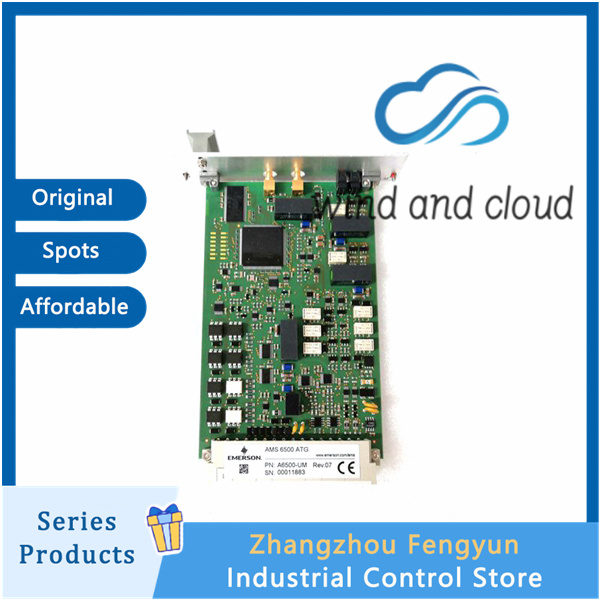

EMERSON A6500-UM｜Universal Measurement Card｜

A6500-UM

Machinery and Environment
Size: Euro board standard 100 × 160 mm, front panel 6 HP (approximately 30 mm) Emerson
Weight: Approximately 200 g (excluding packaging) Emerson
Installation: 19 inch rack, hot swappable, no need to power off Emerson
Working temperature: -20~+70 ℃ (forced air cooling); -20~+55 ℃ (natural heat dissipation) Emerson
Storage temperature: -40~+85 ℃ Emerson
Humidity: 5% to 95% without condensation Emerson
Protection level: IP20, anti air pollution G3 level (HumiSeal) ® 1B31 coating) Emerson
Vibration/Shock: IEC 60068-2-6; Impact of 150 m/s ², 4000 times per axis Emerson

Features and Characteristics
Full scenario measurement: shaft relative/absolute vibration, shell vibration, shaft displacement/expansion difference, valve position, eccentricity, speed/key phase, dynamic pressure, etc.
Flexible configuration: Dual channel independent or combined, supporting evaluation algorithms such as Min/Max, Tandem, Tandem II, time mode, etc. Emerson
Signal processing: Built in Butterworth filter (compliant with ISO 10816), supports PeakVue high-frequency detection Emerson
Intelligent diagnosis: hardware, power supply, temperature, sensor/cable online self-test Emerson
Remote operation: supports remote limit doubling and trip bypass, with buffering and proportional output at both the front and rear ends Emerson
Communication: Convert to Modbus RTU/TCP/IP, OPC UA and upload via A6500-CC; Local USB for configuring Emerson
