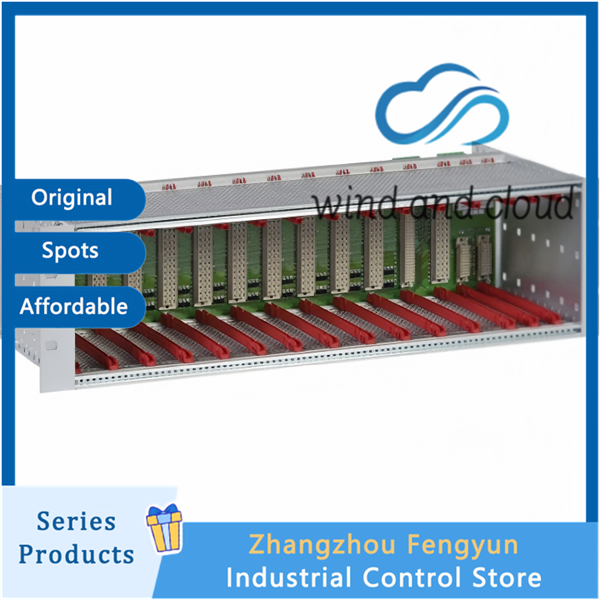

EMERSON A6500-RR｜Redundant Relay Rack｜

All products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second-hand and brand new products are available for sale on this website. Please contact customer service for further communication.

EMERSON A6500-RC｜16-Channel Output Relay Module｜

Installation standard 19 inch cabinet standard
Height 3RU (3U)
Width 84HP
Net weight 2.4 kg
Backplane structure: Passive backplane bus, hot swappable card insertion
Protection level IP20, moisture-proof coating, G3 anti air pollution Emerson
Supply voltage 24VDC (19-32VDC wide voltage)
The total power consumption of the slot is less than 100W
The total power consumption of the relay output circuit is less than 150W
Communication interface backplane internal bus, external Modbus RTU (6-pin terminal), inter rack D-Sub communication
A6500-RR fixed slot layout (non modifiable) Emerson:
Slot 1-9: Vibration/Displacement/Speed Measurement Card (A6500-UM), Temperature Card (A6500-TP)
Relay specific slot (2 slots): Install 2 redundant A6500-RC relay cards (with a 2HP blind plate in between, dual redundant backup)
Communication slot: 1-2 A6500-CC communication cards (single communication/dual redundant communication)
Working temperature: -20 ℃~+70 ℃
Storage temperature: -40 ℃ to+85 ℃
Humidity: 5% to 95% without condensation
Impact: 150m/s ², 4000 times per axis
