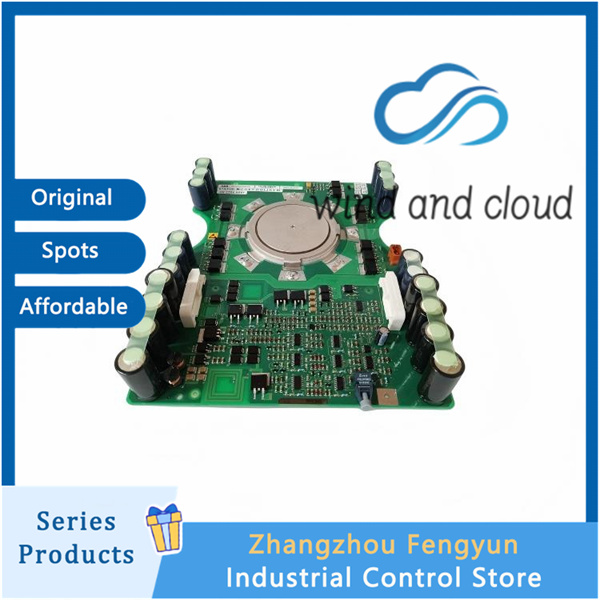

ABB 5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152｜IGCT Module ｜
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152
Parameter
Rated blocking voltage: 4500 V
Continuous on state current: 1000 A (Tc=85 ° C)
Peak switchable current: 3000 A
On state voltage drop: ≤ 2.6 V @ 3000A
Shutdown loss: 25 Ws @ 3000A/2800V
Working temperature: -40 ℃~+125 ℃
Heat dissipation method: double-sided pressure bonding water cooling
Structure: Reverse conduction design (with built-in freewheeling diode)
Control interface: Fully isolated fiber optic communication, resistant to strong electromagnetic interference
Function
Power conversion: As the core switch of the variable frequency main circuit, it completes rectification, inversion, and drives high-power industrial motors.
Integrated driver: Built in dedicated gate driver, receiving instructions through optical fiber to achieve high-speed and precise on-off of IGCT.
Continuation function: Integrated anti parallel diode, supports motor four quadrant operation and energy feedback, without the need for additional continuation devices.
Comprehensive protection: Real time monitoring of voltage, current, temperature, and gate status, quickly blocking the drive when a fault is triggered, protecting the module and the entire machine.
Status feedback: The fiber optic link returns operational data and fault codes, and cooperates with the system to achieve alarm and interlock shutdown.
