ABB 500SCM01 1MRB200059/C 1MRB15004R0001｜Station Control Module｜

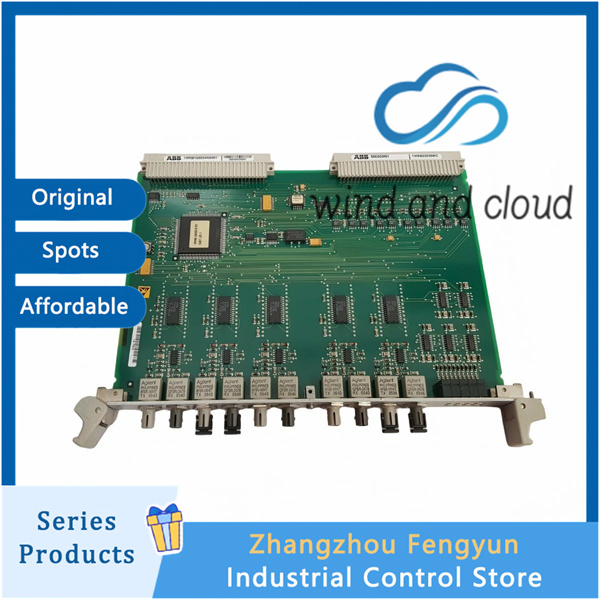

500SCM01 1MRB150004R0001 1MRB200059/C
1. Communication interface
Interface type: Multi channel fiber port (star topology)
Protocol: 500 series internal dedicated bus (P13/AC500)
Topology: Star shaped coupling, supporting aggregation of multiple sub stations/sub racks
Data transmission: low latency, deterministic, no packet loss/jitter
2. Electrical and power consumption
Power supply: Backboard 24 VDC ± 10%
Power consumption: ≤ 15 W
Isolation: High level electrical isolation, strong anti-interference
3. Environment and Machinery
Working temperature: 0 ° C…+55 ° C (industrial standard)
Storage temperature: -40 ° C…+70 ° C
Relative humidity: 5%… 95% (no condensation)
Installation: 500 series standard rack slot, backplane bus connection
Weight: Approximately 370 grams
4. Core functions
Bus coordination and arbitration: manage data priority, ensure trip/control command priority
Star shaped fiber coupling: multi node fiber convergence, simplifying distributed architecture
Station control and synchronization: clock synchronization and data exchange between multiple sub racks/controllers
