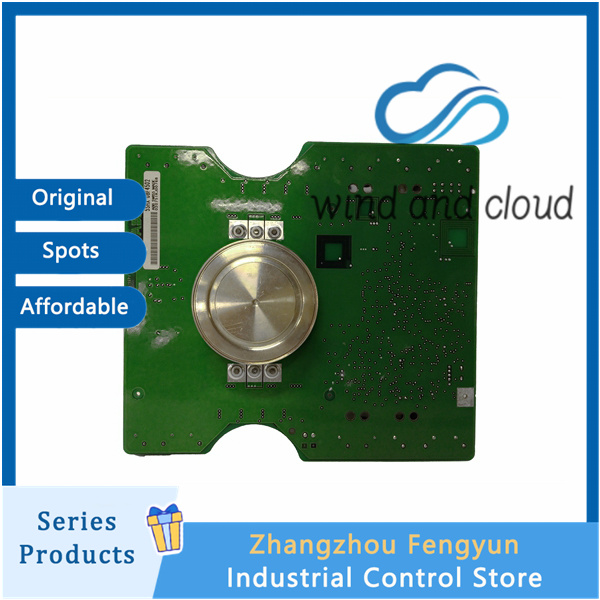

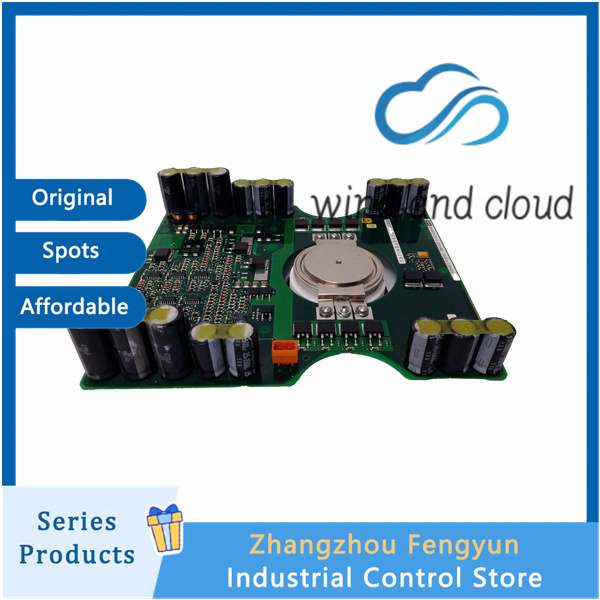

ABB 5SHX08F4502｜IGCT Thyristor Module｜
5SHX08F4502
1. High voltage and high current capability
8.5 kV / 4500 A， Suitable for megawatt level converters such as High Voltage Direct Current (HVDC), Static Var Compensation (SVC), and large-scale transmission systems
Crimp type structure, double-sided heat dissipation, low thermal resistance, long service life, suitable for long-term continuous operation
2. Advantages of IGCT technology
Combining the high voltage/high current of GTO with the fast turn off characteristics of IGBT
Gate commutation technology: All anode current is instantly transferred to the gate during shutdown, with fast shutdown speed, low loss, and high reliability
Built in anti parallel diode simplifies circuit design
3. Typical application scenarios
HVDC High Voltage Direct Current Transmission Converter Valve
SVC/STATCOM reactive power compensation device
High power transmission systems such as rolling mills, mine hoists, and ship electric propulsion
High voltage variable frequency speed regulation and energy storage converter (PCS)
ABB 5SHX08F4502｜IGCT Thyristor Module｜
