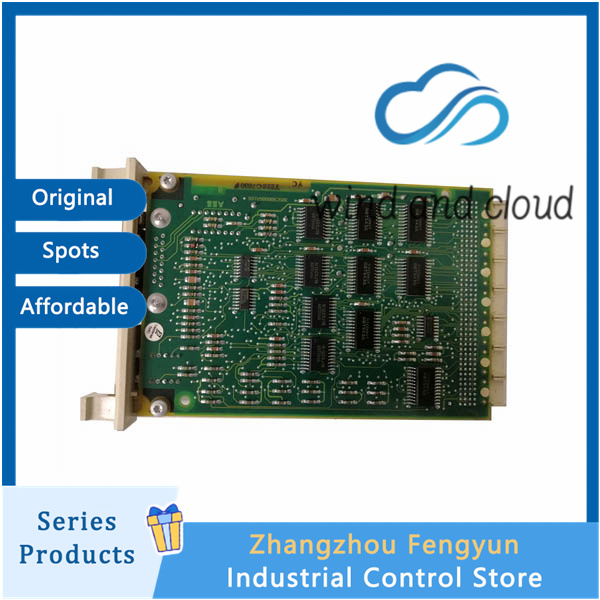

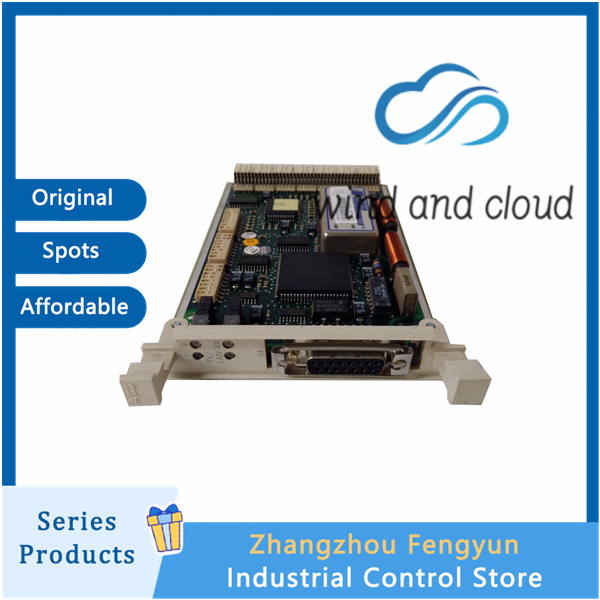

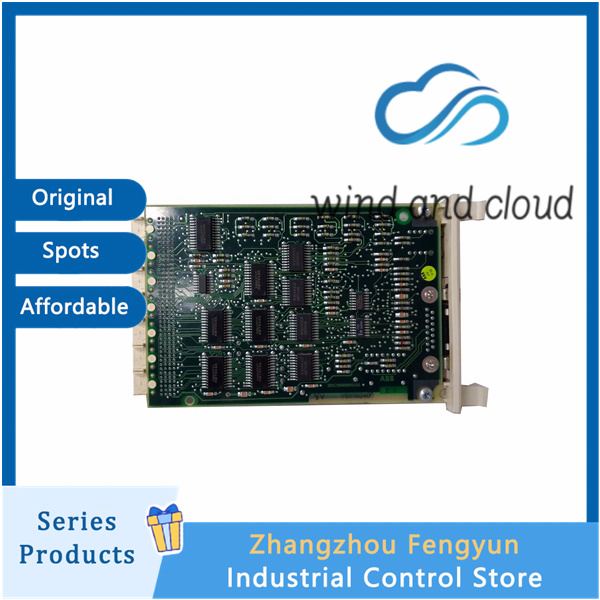

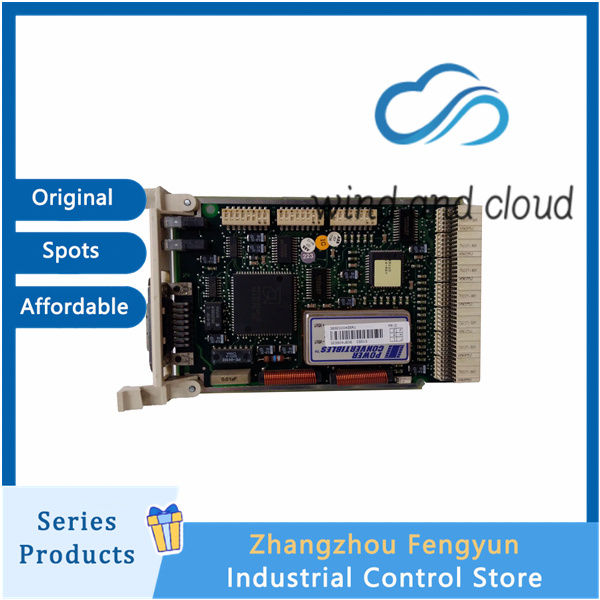

ABB CS513 3BSE000435R1｜LAN-Module｜
CS513 3BSE000435R1
Function
HMI ↔ Controller high-speed communication
Connect MasterView operator station ↔ Control Network (MasterBus 800/300E)
Transmission: process images, real-time data, alarms, trends, operation instructions
Protocol: MasterBus 300E (IEEE 802.4), dedicated real-time bus
Dual machine hot standby redundancy (key value)
Two CS513 plug-in main/backup operator stations, monitoring each other’s heartbeat
When the main station fails, the backup station will automatically take over within 10 seconds without interrupting the session or losing data
Real time synchronization of alarm/trend/operation records to ensure continuous monitoring
Multi protocol compatibility and interface
Onboard: RS-232/485, parallel bus
Support: Modbus RTU, Profibus DP (some versions), compatible with third-party devices
Speed: up to 12 Mbps (Profibus)/115.2 kbps (serial port)
System diagnosis and status management
Self diagnosis of board level faults, visualization of power/communication/channel status
Support remote diagnosis and firmware upgrade to reduce downtime maintenance
Parameter
Power supply: 24V DC ± 20%, powered by the backplane, with a power consumption of approximately 2W
Processor: 32-bit RISC, suitable for real-time communication
Isolation: 1500V AC electrical isolation, resistant to on-site interference
Temperature: -20 ℃~+60 ℃ (working), -40 ℃~+70 ℃ (storage)
Size: 74 × 88 × 204 mm; Weight: ≈ 0.22 kg
Protection: IP20 (inside the cabinet)
