Overview

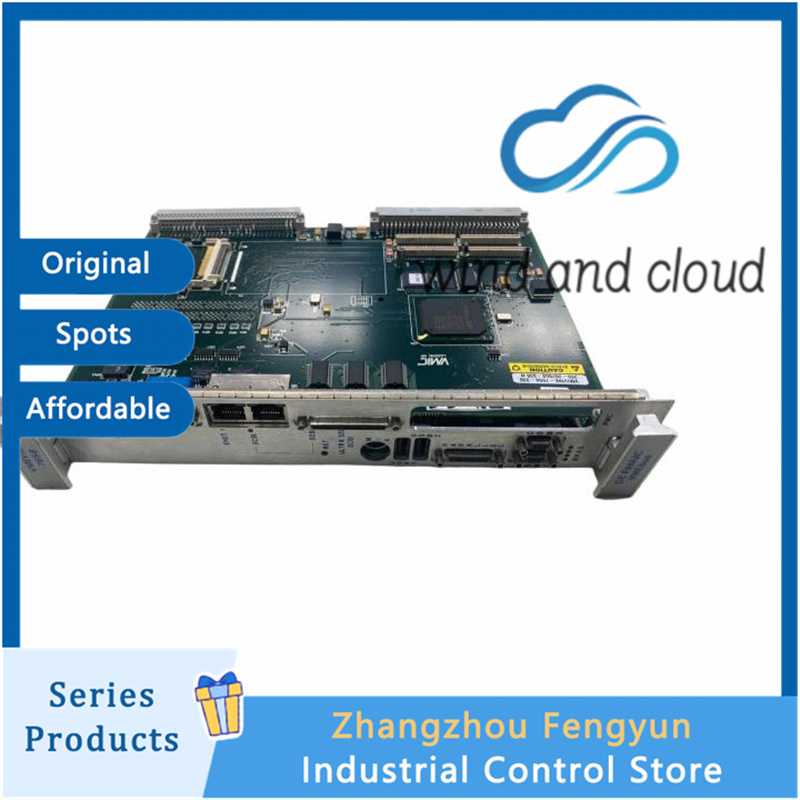

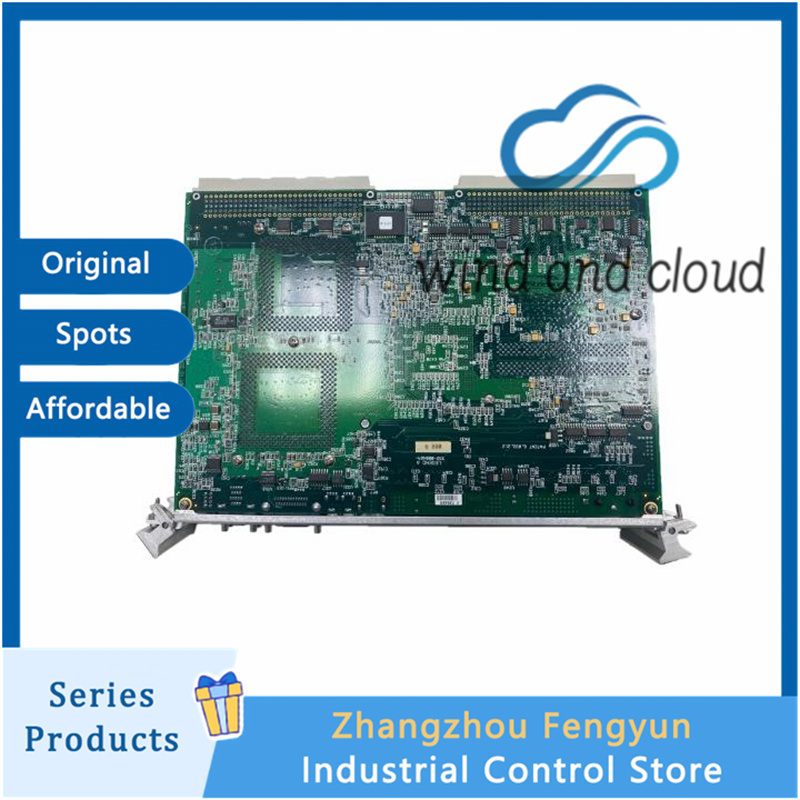

The VMIVME-7658 is a high-performance 6U single-slot VMEbus single-board computer developed originally by VMIC under GE Fanuc, now categorized as Abaco Systems legacy hardware. Built around dual Intel Pentium III processors, this SBC delivers powerful computing capability for demanding VMEbus embedded systems, upgrading performance from the earlier VMIVME‑7486 486 platform.
This active CPU board integrates comprehensive onboard peripherals: dual 10/100 Ethernet, Ultra320 SCSI, Ultra DMA/66 IDE, floppy controller, serial and parallel ports. It supports large ECC SDRAM memory, watchdog timer, and full VMEbus master/slave operation with system controller functions. It can work with legacy VMIC VME storage carriers including VMIVME‑7452 and VMIVME‑7455 for local boot, data logging and software deployment.
VMIVME-7658 is an end-of-life discontinued VME module. New original factory stock is no longer produced. We supply fully tested surplus and refurbished units as drop-in spare parts for mission-critical legacy industrial racks.
Key Features
- Dual Intel Pentium III Processors: Clock speed up to 1.26 GHz, high parallel computing power for complex control and data processing tasks
- 6U Single-Slot VMEbus Eurocard: Standard VME P1/P2 form factor, occupies one slot in standard VME chassis
- Up to 2GB ECC SDRAM: Error-correcting memory to avoid data corruption in long-running embedded systems
- Dual Independent 10/100BASE-T Ethernet: Two network ports for redundant communication or separated control/data networks
- Onboard Ultra320 PCI SCSI Interface: High-speed SCSI channel for mass storage and peripheral connection
- Ultra DMA/66 IDE + Floppy Controller: Compatible with legacy IDE storage carriers VMIVME‑7452 and VMIVME‑7455
- Rich Integrated I/O: Dual 16550-compatible RS‑232 serial ports, ECP/EPP parallel port, battery-backed RTC, hardware watchdog timer
- Full VMEbus Master / Slave & System Controller: Supports VME slot 1 system controller mode, programmable bus arbitration: Round Robin, Single Level, Priority modes
- Industrial Rugged Build: Conformal coating available, vibration and shock resistant for field deployment
Technical Specifications
| Item | Details |
|---|---|
| Part Number | VMIVME-7658 |
| Original Manufacturer | VMIC (GE Fanuc legacy, Abaco Systems) |
| Product Type | VMEbus Single Board Computer (SBC / CPU Board) |
| Form Factor | 6U VMEbus, single slot |
| CPU | Dual Intel Pentium III, up to 1.26 GHz |
| System Memory | Up to 2 GB ECC SDRAM |
| Network | Dual 10/100BASE-T Ethernet |
| Storage Interfaces | Ultra320 PCI SCSI; Ultra DMA/66 IDE; Floppy controller |
| Serial Ports | 2 × 16550 RS‑232 |
| Parallel Port | ECP/EPP compatible |
| VMEbus Functions | VME Master/Slave, Slot 1 System Controller, programmable bus arbitration |
| Additional Functions | Battery-backed real-time clock, hardware watchdog timer |
| Compatible Storage Carriers | VMIVME‑7452 (Floppy + IDE HDD/Flash), VMIVME‑7455 (IDE CD-ROM) |
| Status | Discontinued / EOL legacy VME SBC |
Applications
- Power plant DCS, turbine control and monitoring VME racks
- Aerospace & defense test, simulation and data acquisition platforms
- Marine and heavy railway onboard embedded control systems
- Industrial automation legacy VME system retrofit & spare replacement
- Real-time embedded systems running VxWorks, Linux and other industrial operating systems
- High-speed factory test stands, signal processing and data recording equipment
VMIVME-7658 vs VMIVME-7486
- VMIVME‑7486: Single 80486 CPU, entry-level VME SBC, suitable for simple control and low-speed data tasks
- VMIVME‑7658: Dual Pentium III high-performance VME SBC, much stronger processing power, dual network, Ultra320 SCSI, designed for heavy computation and high throughput data acquisition Both models can pair with VMIVME‑7452 and VMIVME‑7455 IDE storage carriers in the same VME chassis.
Why Choose VMIVME-7658
The VMIVME‑7658 is one of the high-end legacy VMIC VME single board computers widely deployed in critical infrastructure. When your existing VMIVME‑7658 fails, replacing it with a tested refurbished unit is often the most cost-effective way to keep the whole VME rack operational without expensive system redesign.
Every VMIVME‑7658 unit we ship undergoes comprehensive pre-shipment functional testing, memory, network, storage and VME interface verification. Anti-static shockproof packaging for international shipment. Bulk spare inquiries for plant maintenance teams are welcome.
Supply & Shipping
- Condition: Tested surplus / refurbished (EOL legacy board, brand new original stock unavailable)
- Full pre-shipment functional testing & quality inspection
- Global delivery: DHL, FedEx, air freight options
- Bulk order support for plant spare parts
- Datasheet and installation manual available upon request
FAQ
Q: Is VMIVME-7658 compatible with VMIVME-7452? A: Yes. VMIVME‑7658 carries onboard IDE and floppy controller, it can drive VMIVME‑7452 floppy/HDD carrier and VMIVME‑7455 CD-ROM carrier via VME P2 connector.
Q: What is the difference between VMIVME-7658 and VMIVME-7486? A: VMIVME‑7658 uses dual Pentium III CPUs with higher computing performance, dual Ethernet and Ultra320 SCSI. VMIVME‑7486 is an older 80486 SBC for basic control tasks.
Q: Is VMIVME-7658 still in production? A: No, this is end-of-life legacy hardware. We supply tested refurbished and surplus units for equipment maintenance replacement.
Q: Can VMIVME-7658 act as VME system controller? A: Yes. It supports slot 1 system controller role with multiple programmable bus arbitration modes.
