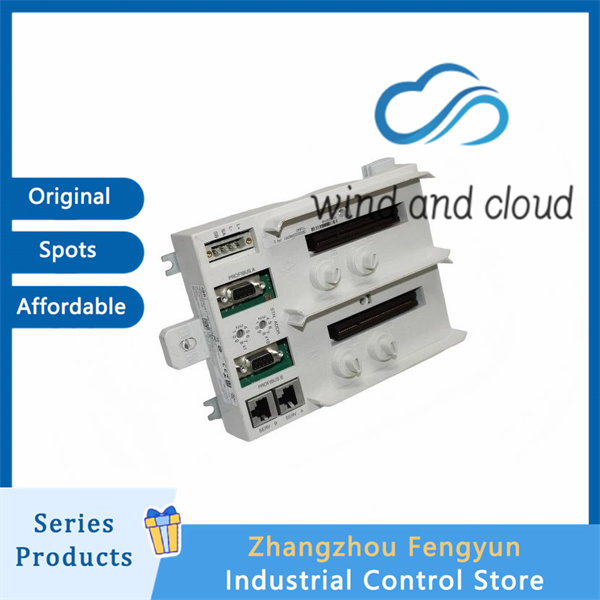

ABB TU847 3BSE022462R1｜Module Termination Unit｜
ABB TU847 (3BSE022462R1) is a Module Termination Unit (MTU) for the CI840/CI840A PROFIBUS communication interface in the ABB S800 I/O / System 800xA platform. It is a passive interface/termination unit, not an active I/O module. ABB’s current hardware documentation confirms the article number and function.
Item Specification
Manufacturer ABB
Model TU847
Part No. 3BSE022462R1
Product type Module Termination Unit (MTU)
System ABB S800 I/O / System 800xA
Compatible interface CI840 / CI840A
Communication PROFIBUS DP-V1
Configuration 1+1 redundant CI840/CI840A
I/O redundancy Non-redundant / single I/O
Power input 24 V DC, 19.2–30 V DC
Mounting Vertical or horizontal
Hot swap No
Net weight Approx. 0.55 kg
Main function
TU847 provides the physical and electrical interface for two CI840/CI840A communication interfaces in a 1+1 redundant configuration. It includes connections for:
Two CI840/CI840A modules
24 V DC power
Electrical ModuleBus
Two PROFIBUS connections
Two service-tool connections
Two rotary switches for station address setting, 0–99
ModuleBus Optical Port connection via TB806/TB842
Mechanical keying to prevent incorrect module insertion
Important distinction
The terminology can be confusing:
TU847 supports redundant CI840/CI840A communication interfaces, but the I/O itself is non-redundant (single I/O). ABB’s product documentation describes it as “Redundant CI840/CI840A, Single I/O.”
So the architecture is essentially:
PROFIBUS DP → CI840 + CI840 → TU847 → S800 I/O
The two CI840 interfaces provide communication redundancy, while the downstream I/O configuration remains single/non-redundant.
Included components
The older ABB product description specifies that TU847 is supplied for 1+1 CI840, supporting non-redundant I/O, and includes:
1 × Power Supply Connector
1 × TB807 ModuleBus Terminator
TU846 vs. TU847
Feature TU846 TU847
Function Redundant CI840 + redundant I/O Redundant CI840 + single I/O
CI840 configuration 1+1 1+1
I/O configuration Redundant Non-redundant
Type Redundant MTU Redundant CI840 MTU
Part No. 3BSE022460R1 3BSE022462R1
ABB TU847 3BSE022462R1｜Module Termination Unit｜
