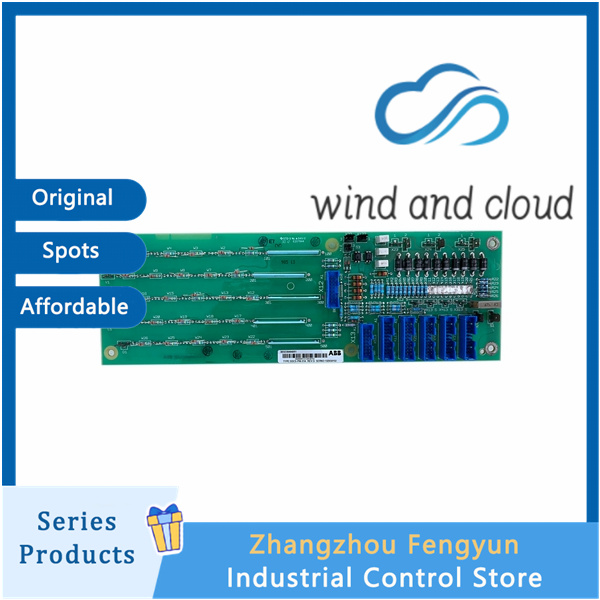

SDCS-PIN-51 3BSE004940R0001 ABB Measuring Board
Function
Voltage measurement: AC side incoming line voltage, DC side armature voltage (up to 1000V DC)
Current measurement: armature current (via current transformer), current signal conditioning and scaling
Pulse allocation: thyristor triggered pulse sorting (D5/D6/D7 power module)
Temperature Monitoring: Power Module Temperature Collection and Overheating Protection
Signal isolation: strong and weak electrical isolation, impedance matching, jumper range configuration
Specification
Power supply: DC 24V (powered by the main control board)
Measurement accuracy: ± 0.1% (full scale)
Channel: 8 high-precision analog inputs (voltage/current/temperature)
Interface: X12/X13 ribbon cable connected to SDCS-CON-4; Connect the connector to the trigger board
Size: Approximately 185 × 150 × 20 mm
Weight: Approximately 0.16 kg
Working temperature: -20 ° C to+55 ° C
Protection: PCB three proof coating (COAT version), dustproof, moisture-proof, and corrosion-resistant
SDCS-PIN-51 3BSE004940R0001 ABB Measuring Board
