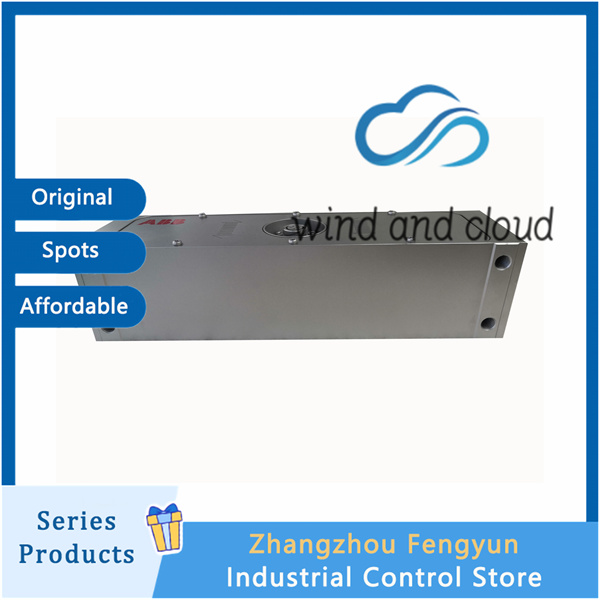

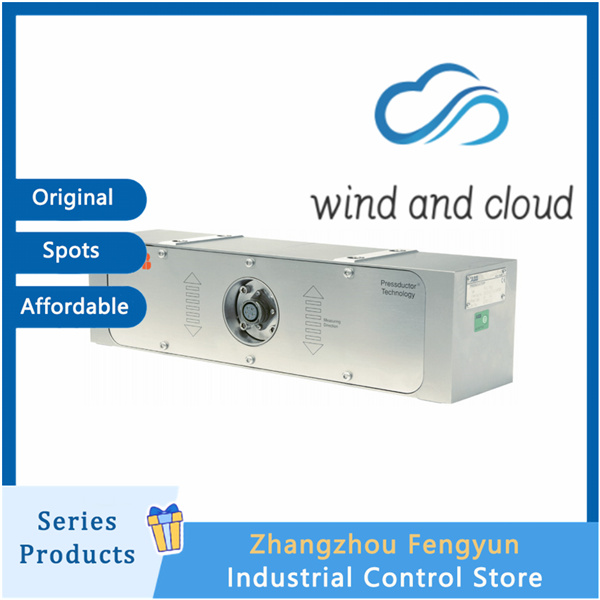

Durable and Sturdy Construction:
Manufactured from a single piece of stainless steel, the sensor offers exceptional resistance to overload, impact, and vibration. It also provides high protection against dust and corrosion, ensuring long-term stability and reliability in demanding industrial environments.

Strong Adaptability:
The standard design uses high-strength stainless steel with fully encapsulated internal components. A milling version is available for use in particularly harsh environments such as galvanizing or pickling lines, where corrosion resistance and structural strength are critical.

Output Signal: 2 mV/V (standard); optional transmitter version available with 4–20 mA or 0–10 V output

Nonlinearity: ≤ ±0.5% F.S.

Repeatability: ≤ ±0.3% F.S.

Operating Temperature: −30 °C to +80 °C (compensated range: −10 °C to +60 °C)

Protection Level: IP65 (dustproof and waterproof)

Electrical Connection: 6-core shielded cable, standard length 5 m (customizable)

Technical Specifications

Item	Specification
Nominal Load (Rated Capacity)	50.0 kN (11,250 lbs)
Extended Load	75.0 kN (16,875 lbs)
Allowable Load (Lateral, h = 300 mm)	25.0 kN (5,625 lbs)
Overload Capacity (Vertical)	500.0 kN (112,500 lbs)
Overload Capacity (Lateral, h = 300 mm)	125.0 kN (28,125 lbs)
Deflection	0.02 mm (0.8/1000 in)
Spring Constant	2,500 kN/mm (1.43 × 10⁷ lbs/in)
